Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2004
>>
Grand Prix V6-3.8L SC VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Solenoid, A/T
>>

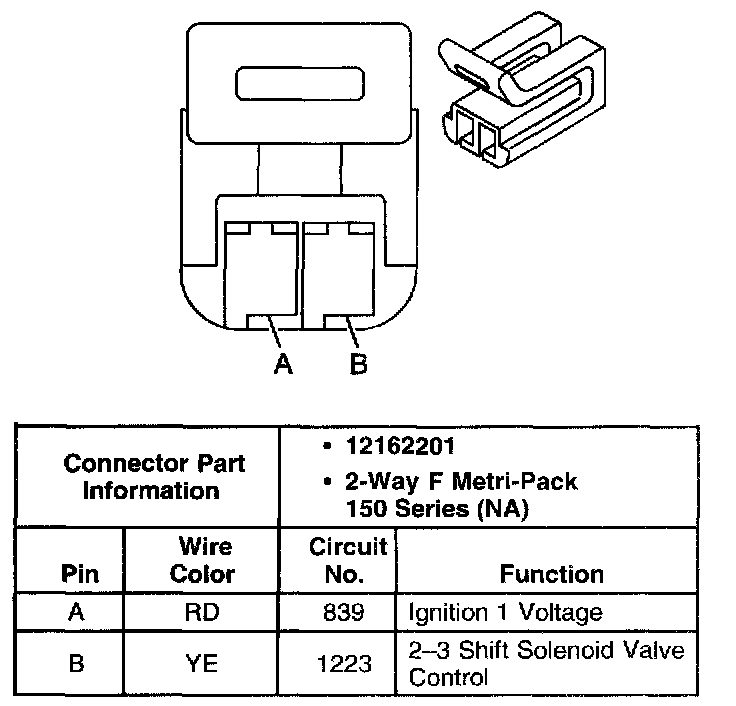

2-3 Shift Solenoid Valve Connector, Wiring Harness Side
2-3 Shift Solenoid Valve Connector, Wiring Harness Side
2-3 Shift Solenoid Valve Connector, Wiring Harness Side:
