Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Diagrams
>>
Connector Views
Connector Views

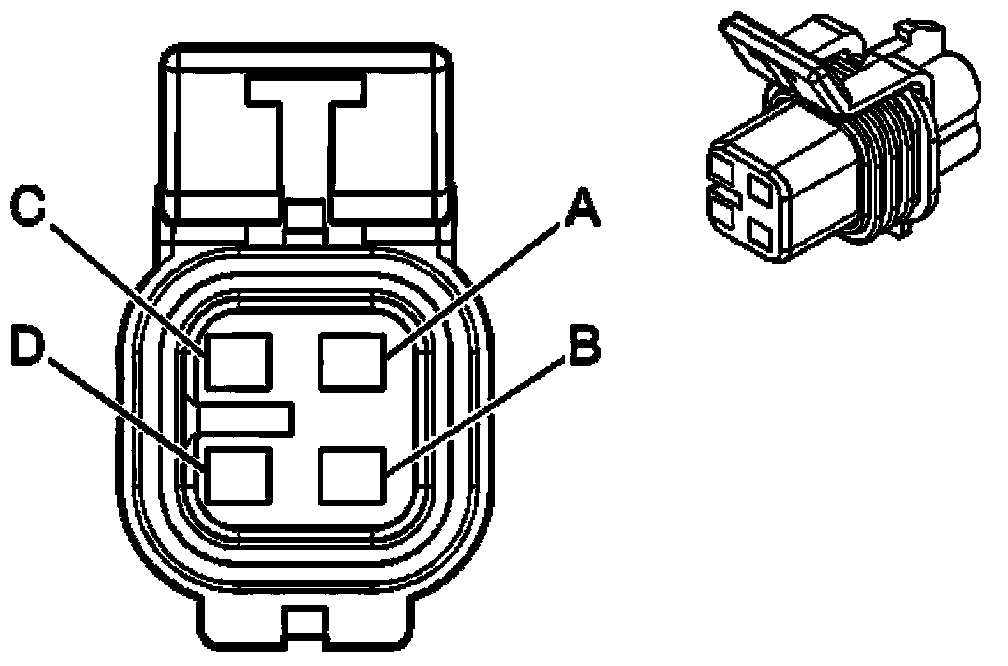

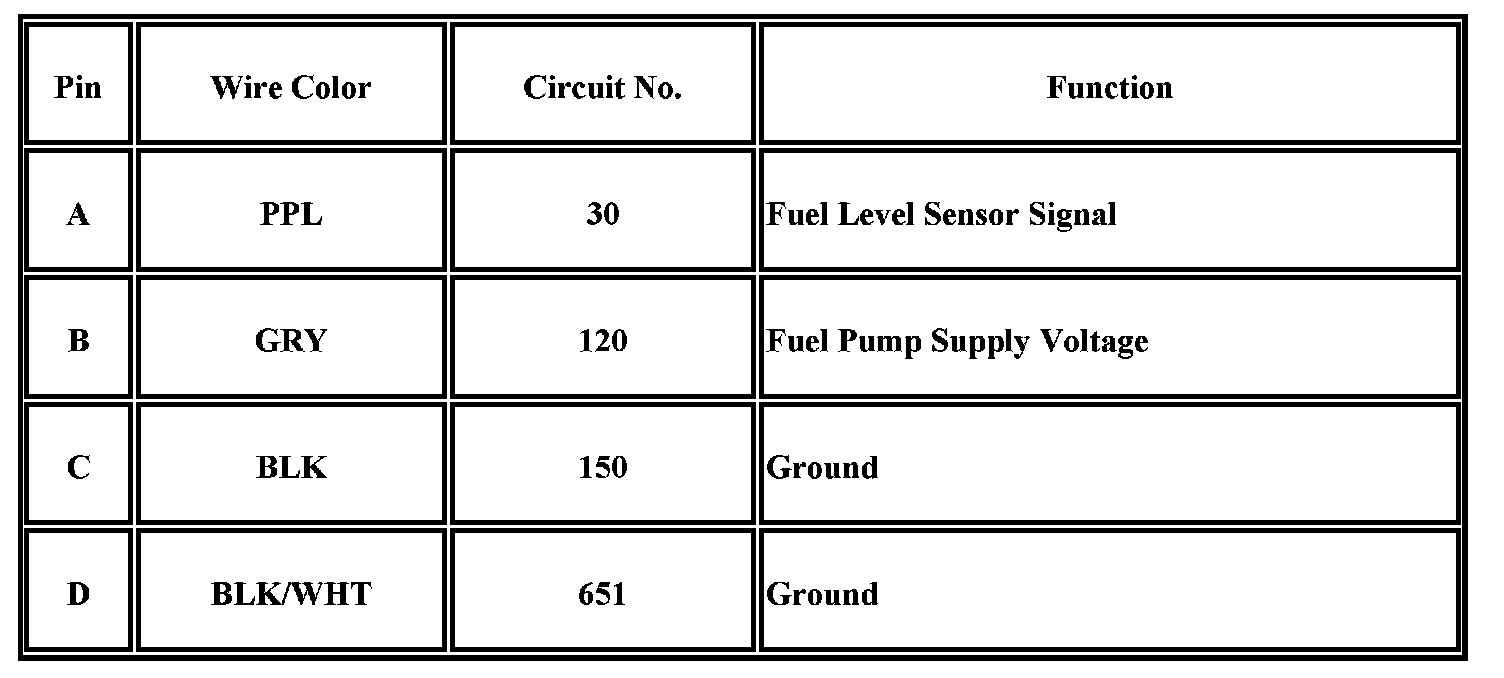

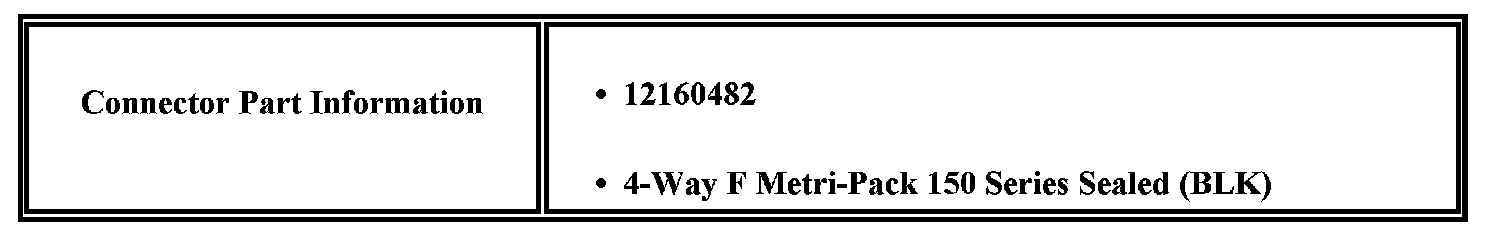

Fuel Pump and Sender Assembly
