Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) STORAGE COMPARTMENT LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the front floor console cupholder/storage compartment.

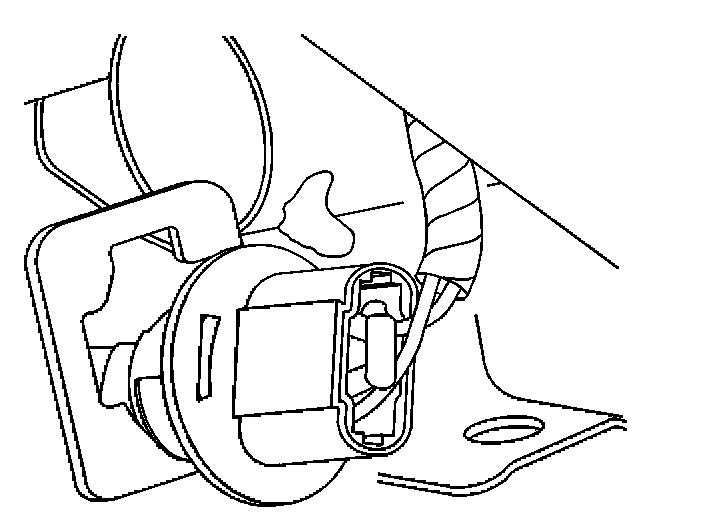

2. Rotate the socket counterclockwise to remove it from the bracket.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE

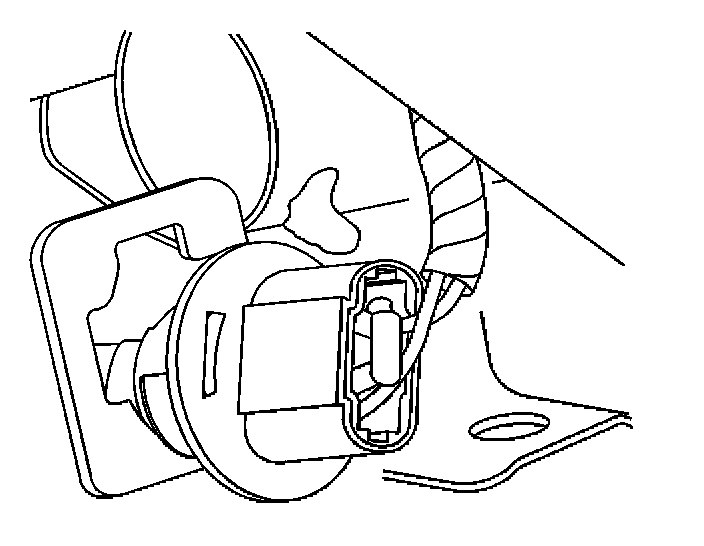

1. Install the bulb to the socket, pressing until fully seated.




2. Position the socket to the bracket.
3. Rotate the socket clockwise to secure it to the bracket.
4. Install the front floor console cupholder/storage compartment.
