Compartment Sill Plate Replacement - Rear

COMPARTMENT SILL PLATE REPLACEMENT - REAR

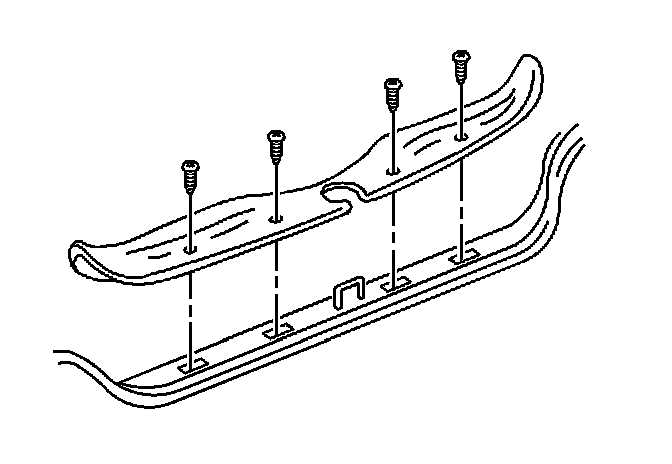

REMOVAL PROCEDURE




1. Open the rear compartment.
2. Remove the sill trim plate screws.
3. Lift up from the inside edge of the sill plate.
4. Remove the rear compartment sill plate.

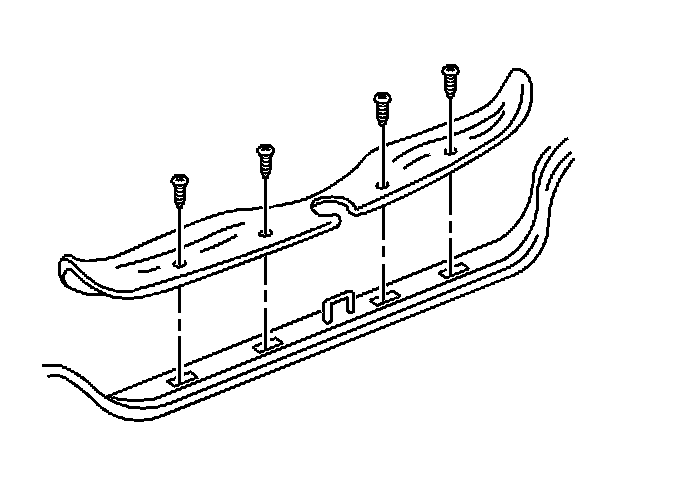

INSTALLATION PROCEDURE




1. Position the rear compartment sill plate.
2. Install the sill plate screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Close the rear compartment.
