Front Carpet Retainer Replacement

Front Carpet Retainer Replacement

Removal Procedure

1. Starting at the rear edge, pull the carpet retainer upward to disengage the retaining clips.

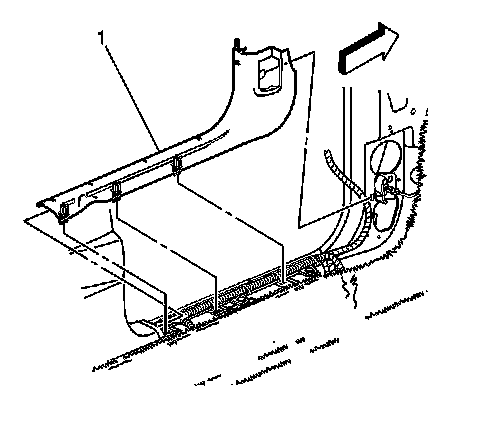

2. Remove the front carpet retainer (1).

Installation Procedure




1. Position the front carpet retainer (1) aligning the retaining clips.
2. Apply pressure to ensure the retainers lock into place at all locations.
