Rear

Transmission Mount Replacement - Rear

Removal Procedure
1. Raise and support the vehicle.





2. Support the transmission with a jack and wood block.

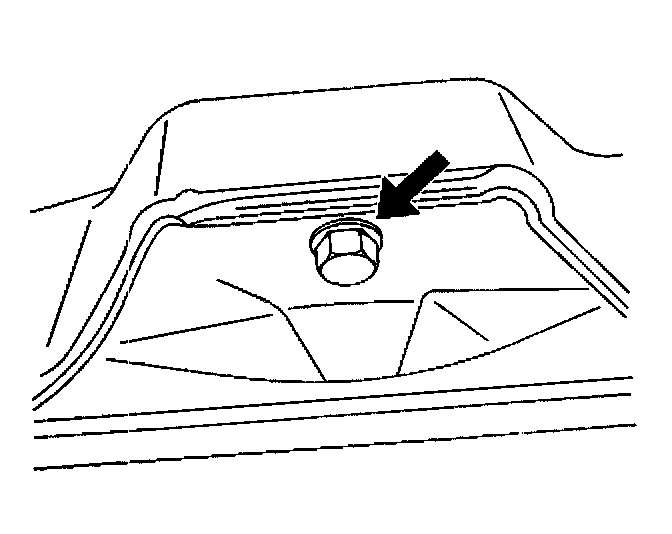

3. Remove the through-bolt.

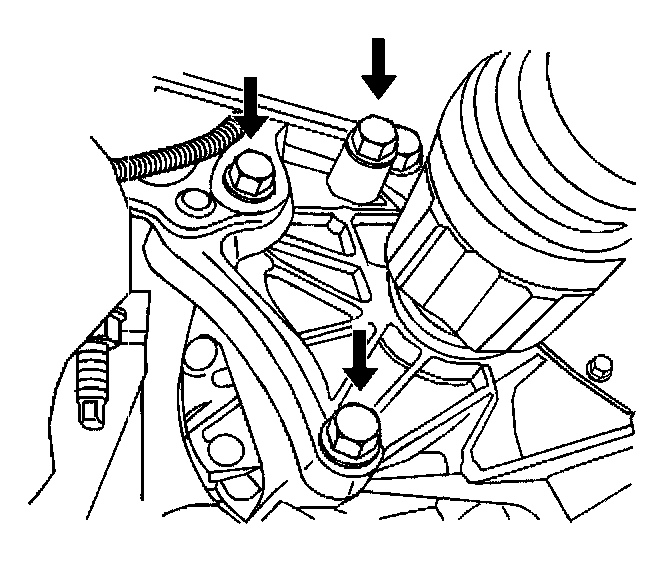

4. Remove the rear mount to transmission bolts.
5. Remove the rear mount.

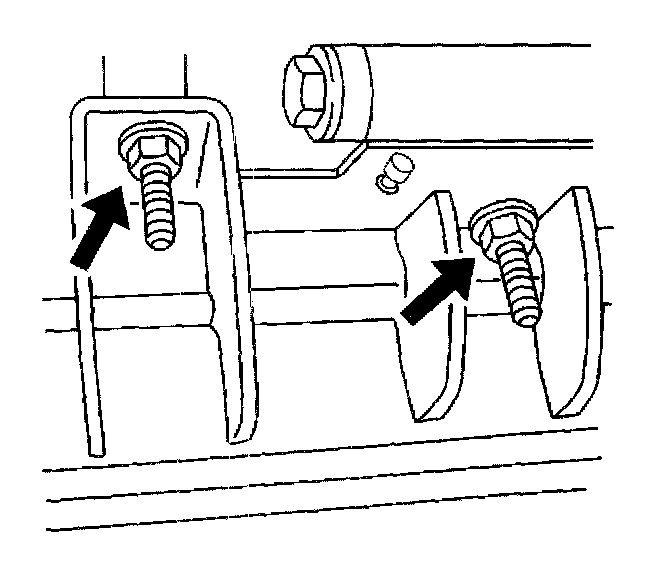

6. Remove the 2 rear bracket cradle nuts.

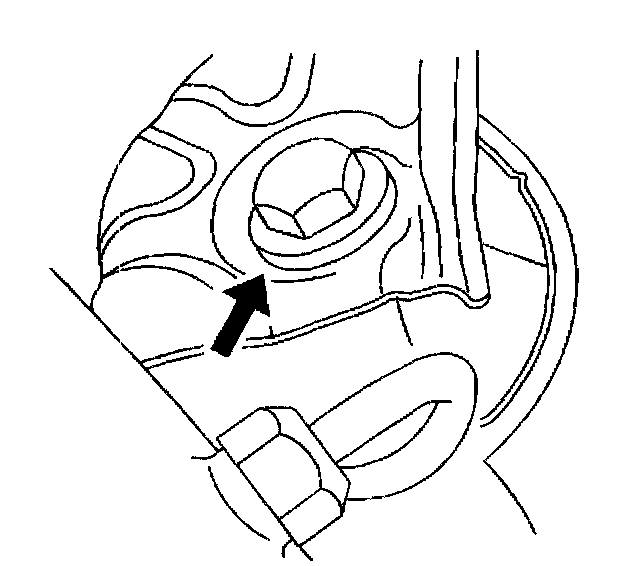

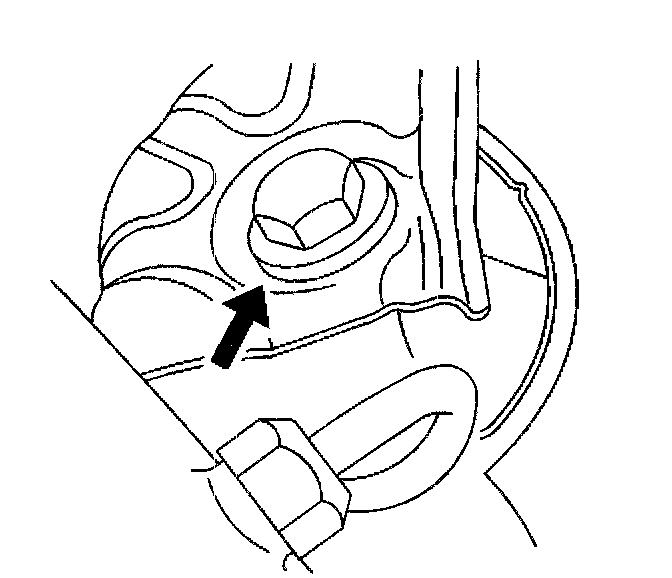

7. Remove the rear bracket to cradle bolt.
8. Remove the bracket.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the rear bracket and rear bracket to cradle bolt.
Tighten the rear bracket to cradle bolt to 66 Nm (49 ft. lbs.).

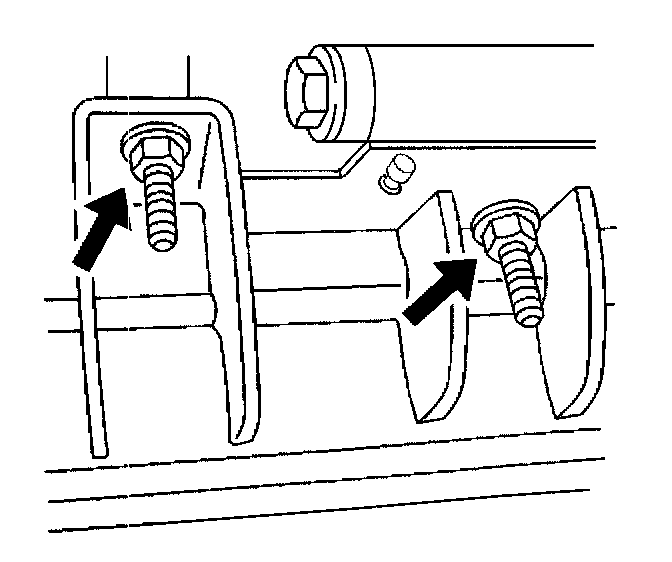

2. Install the 2 rear bracket to cradle nuts.
Tighten the cradle nuts to 66 Nm (49 ft. lbs.).

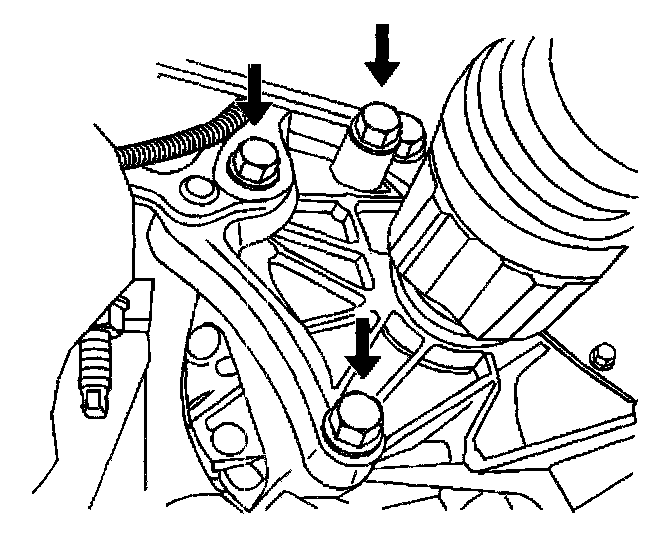

3. Install the rear mount and the rear mount to transmission bolts.
Tighten the rear mount to transmission bolts to 110 Nm (81 ft. lbs.).

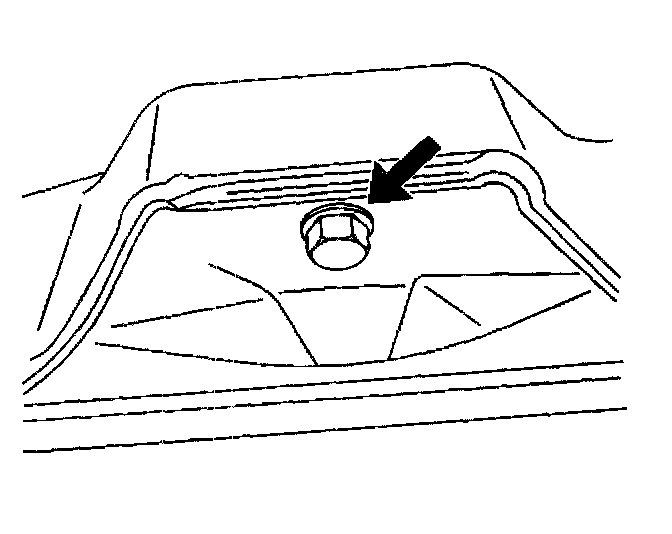

4. Install the through-bolt.
Tighten the through-bolt to 130 Nm (96 ft. lbs.).





5. Remove the block of wood and jack from underneath the transmission.
6. Lower the vehicle.
