Seals and Gaskets: Service and Repair

Axle Shaft Oil Seal Replacement

Tools Required
^ J 23129 Seal Remover
^ J 6125-B Slide Hammer
^ J 44385 Differential Bearing Race and Seal Installer
^ J 7079-2 Non-threaded Driver Handle

Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the front wheel and tire assemblies.
3. Remove the wheel driveshaft.

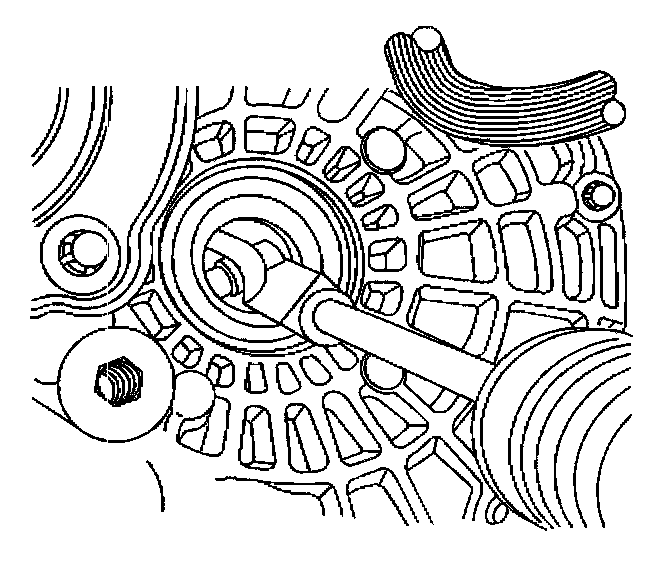

4. Use the J 23129 and the J 6125-B in order to remove the seal.
5. Inspect the seal bore for nicks or for burrs. Clean the bore with a fine grade sandpaper, if necessary.

Installation Procedure

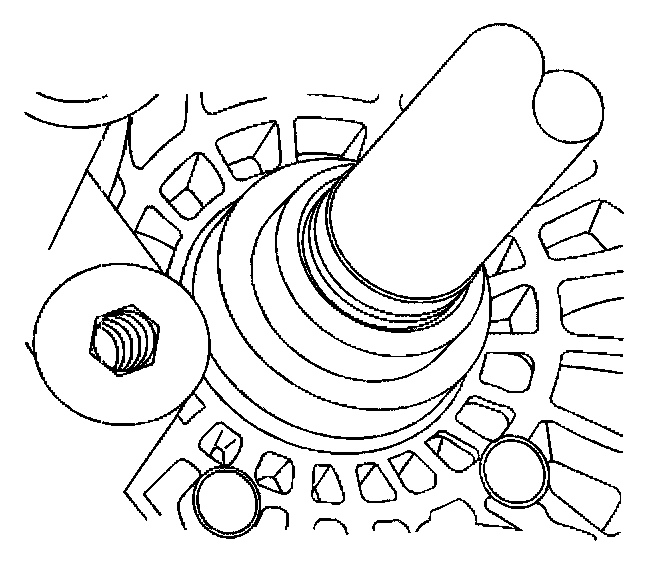

1. Use the J 44335 and the J 7079-2 in order to install a new seal. Ensure that the seal is seated flush to the outer bore area.
2. Lubricate the seal with Dexron II transmission fluid.
3. Install the wheel driveshaft.
4. Install the front tire and wheel assemblies.
