Child Seat Tether Attachment: Service and Repair

CHILD RESTRAINT TETHER ANCHOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the rear shelf trim panel.

IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.

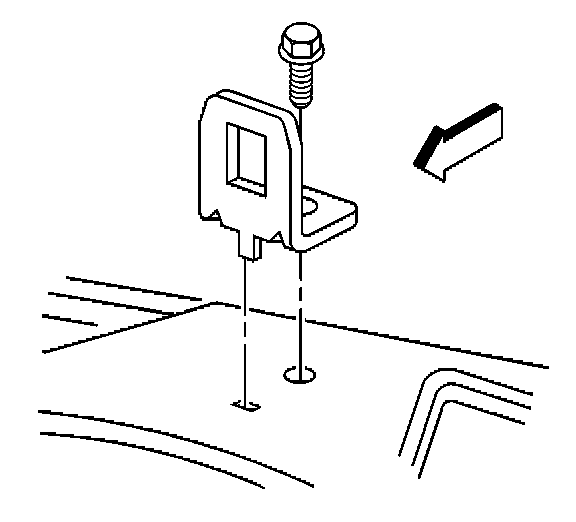

2. Remove the tether anchor bolt.
3. Remove the tether anchor bracket from the rear self.

INSTALLATION PROCEDURE




1. Install the tether anchor bracket to the rear self.
2. Install the tether anchor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the tether anchor bolt to 28 N.m (21 lb ft).

3. Install the rear shelf trim panel.
