EVAP Hoses/Pipes Replacement - Engine (Vacuum Pipe)

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - ENGINE (VACUUM PIPE)

REMOVAL PROCEDURE




1. Remove the air cleaner outlet resonator.
2. Disconnect the engine purge vacuum pipe from the intake manifold.

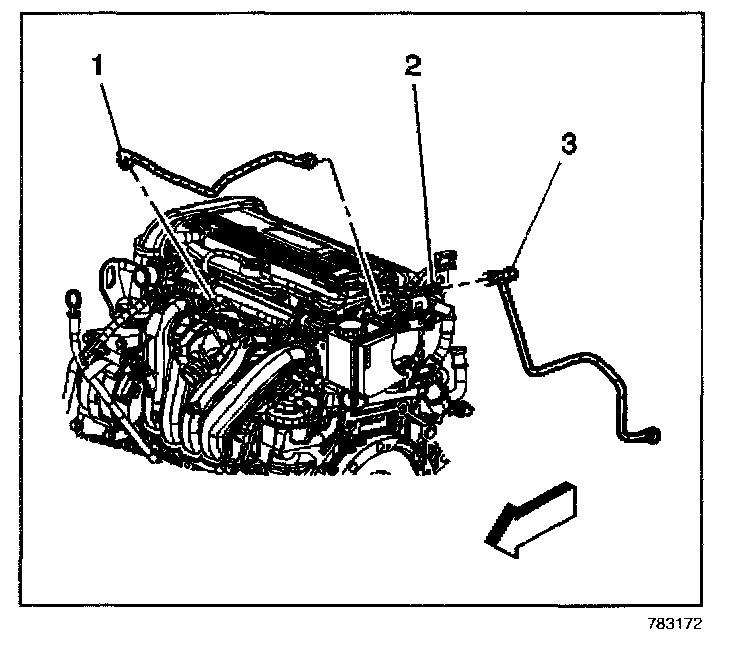

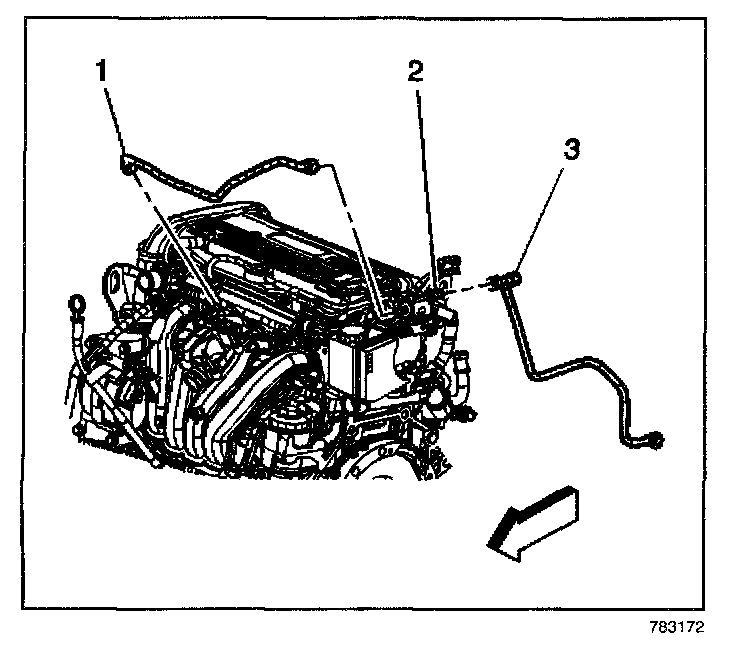

3. Connect the engine purge vacuum pipe (1) to the EVAP canister purge valve (2).
4. Remove the engine purge vacuum pipe.

INSTALLATION PROCEDURE




1. Connect the engine purge vacuum pipe to the EVAP canister purge valve.
2. Connect the engine purge vacuum pipe to the intake manifold port.
3. Install the air cleaner outlet resonator.
