EVAP Hoses/Pipes Replacement - Engine (Purge Pipe)

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - ENGINE (PURGE PIPE)

REMOVAL PROCEDURE




1. Remove the air cleaner assembly.

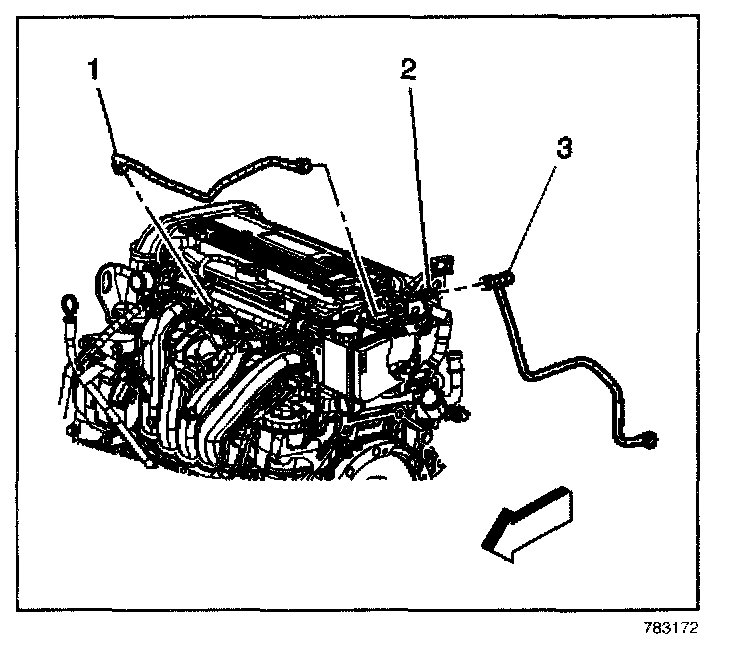

2. Disconnect the engine purge pipe (3) from the evaporative emission (EVAP) canister purge valve (2).
3. Remove the engine purge pipe.

INSTALLATION PROCEDURE

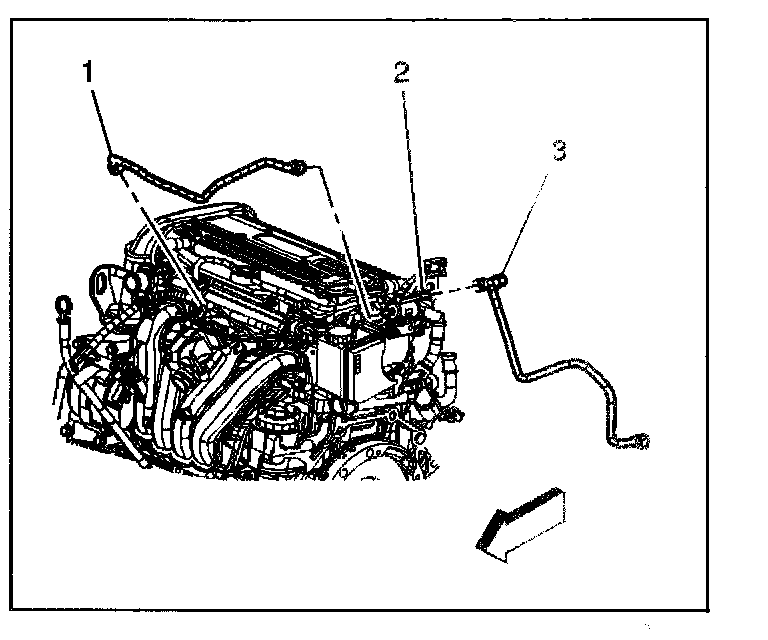

1. Connect the engine purge pipe (3) to the evaporative emission (EVAP) canister purge valve (2).
2. Install the air cleaner assembly.
