Zone 5

Disabling Zone 5







1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
2. Turn OFF the ignition.
3. Remove the key from the ignition switch.
4. Remove the LH I/P wiring harness junction block access panel.

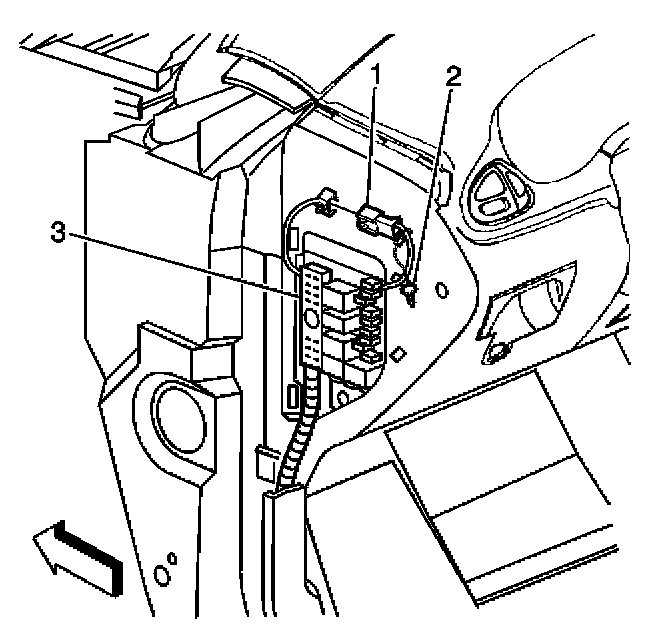

5. Remove the AIR BAG Fuse from the LH I/P wiring harness junction block (3).

IMPORTANT: With the AIR BAG Fuse removed and the ignition ON, the AIR BAG warning lamp illuminates. This is a normal operation and does not indicate an SIR system malfunction.







6. Remove the RH I/P wiring harness junction block access panel.

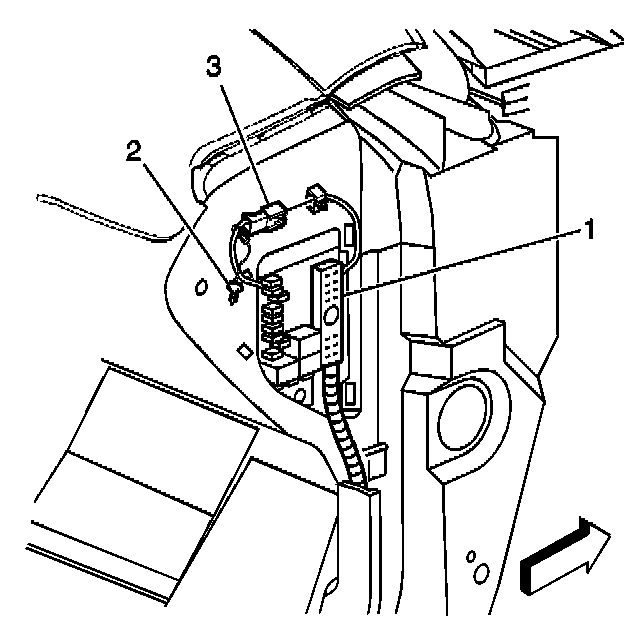

7. Remove the connector position assurance (CPA) (2) from the inflatable restraint I/P module connector (3) located above the RH I/P wiring harness junction block.
8. Disconnect the I/P module connector (3).
