Mode Actuator Replacement

MODE ACTUATOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel IP Trim Pad.

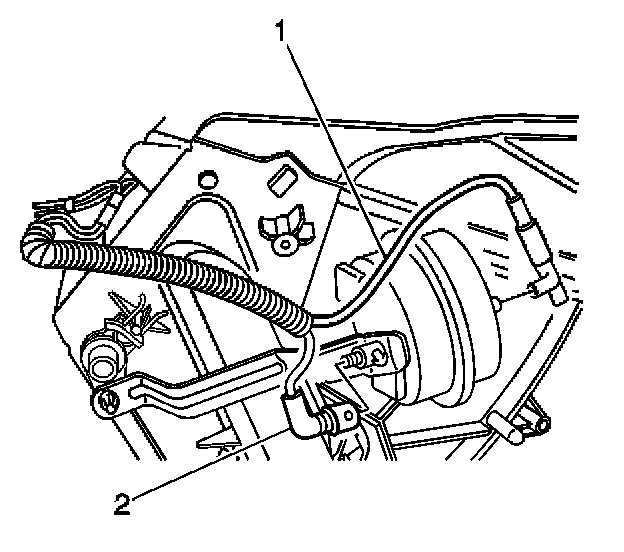

Disconnect the yellow vacuum hose (1) and red vacuum hose (2) from the mode actuator.

IMPORTANT: Note the location of the hoses.




2. Remove the recirculation actuator.

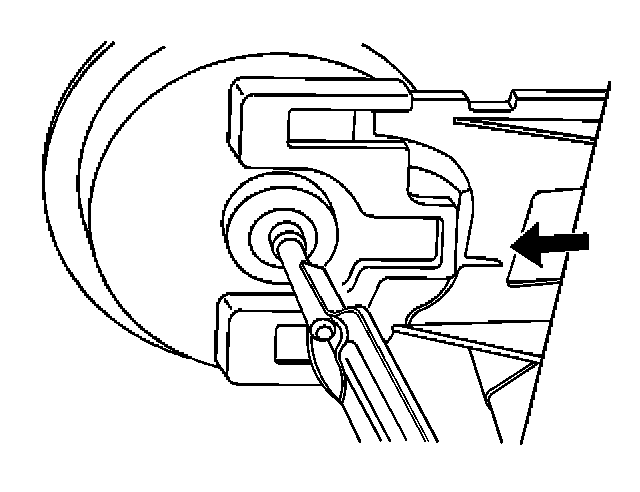

2.1. Lift the actuator lock tab.
2.2. Slide off the actuator.




3. Remove the actuator linkage from the mode door lever.

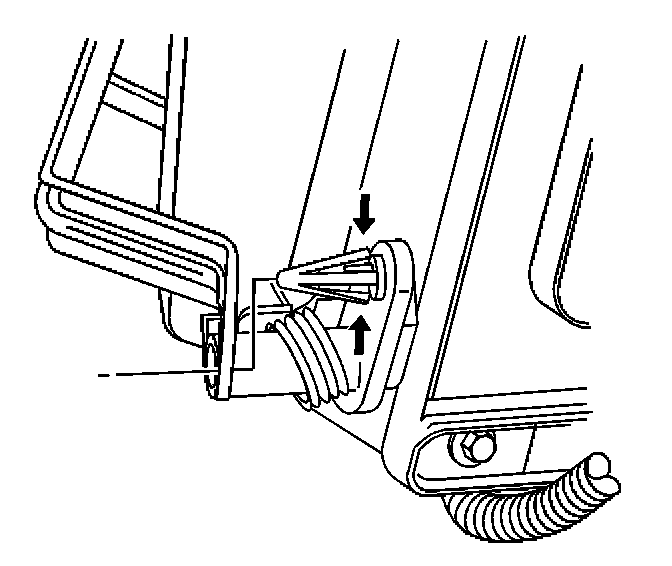

Squeeze the tabs on the lever in order to remove the linkage.

INSTALLATION PROCEDURE

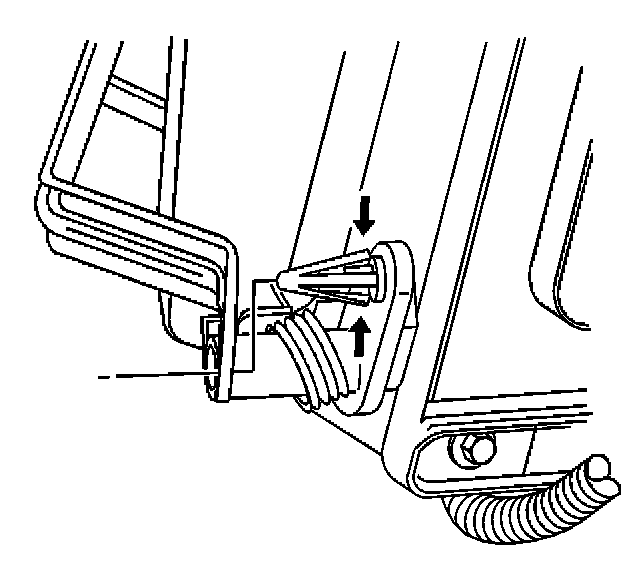

1. Install the actuator linkage to the mode door lever.




2. Slide the mode actuator onto the mounting bracket until the tab locks.

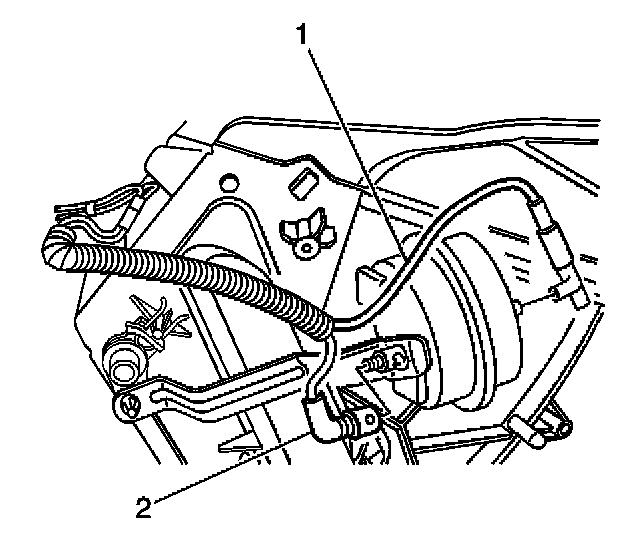

3. Connect the yellow vacuum hose (1) and the red vacuum hose (2) to the mode actuator.
4. Install the instrument panel IP Trim Pad.
