Defroster Actuator Replacement

DEFROSTER ACTUATOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel IP Trim Pad.

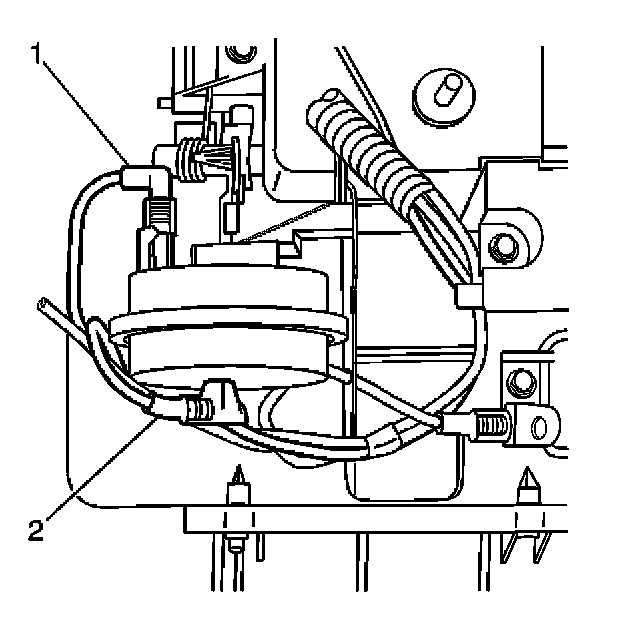

2. Remove the blue vacuum hose (1) and the green vacuum hose (2) from the defroster actuator.

IMPORTANT: Note the location of the hoses.




3. Remove the defroster actuator.

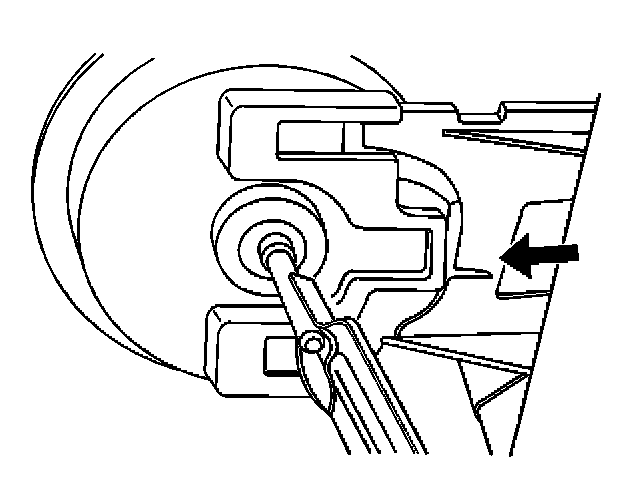

3.1. Lift the actuator lock tab.
3.2. Slide off the actuator.

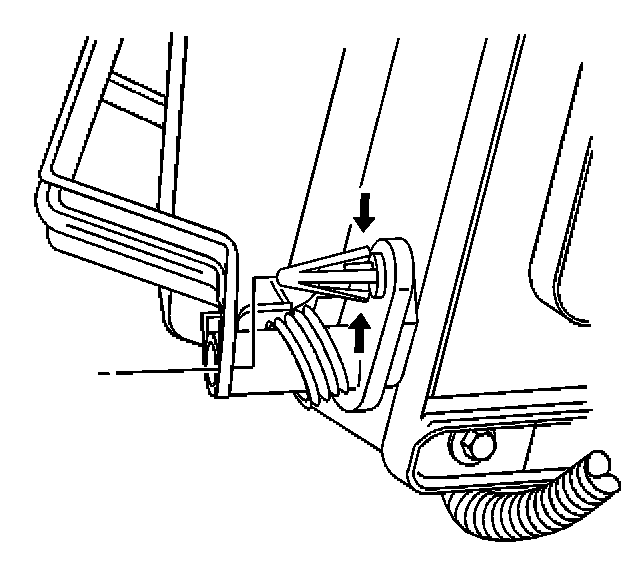

4. Remove the actuator linkage from the defroster door lever. Squeeze the tabs on the lever in order to remove the linkage.

INSTALLATION PROCEDURE

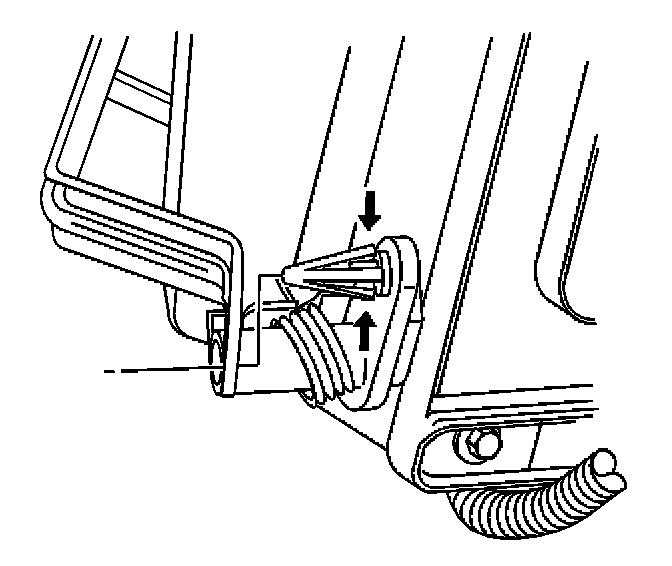

1. Install the actuator linkage to the defroster door lever.




2. Slide the defroster actuator onto the mounting bracket until the tab locks.
3. Connect the blue vacuum hose and the green vacuum hose to the defroster actuator.
4. Install the instrument panel IP Trim Pad.
