Air Temperature Actuator Replacement

AIR TEMPERATURE ACTUATOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel compartment.

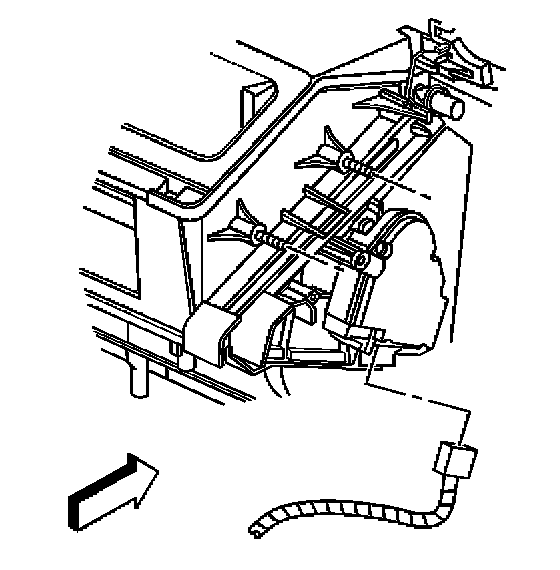

2. Disconnect the temperature actuator electrical connector.

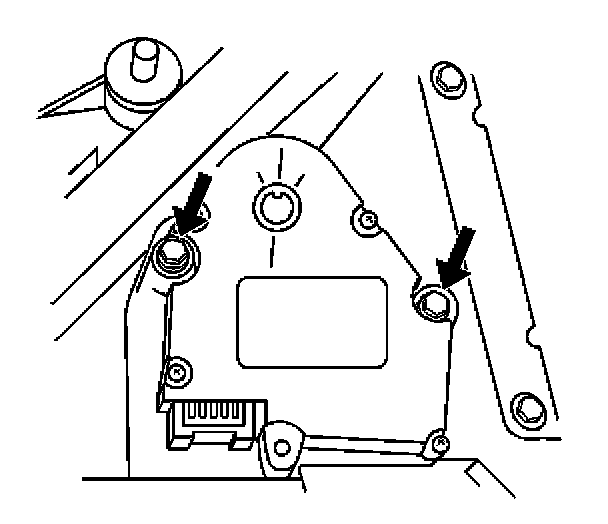

3. Remove the two screws from the actuator.
4. Remove the actuator.

INSTALLATION PROCEDURE

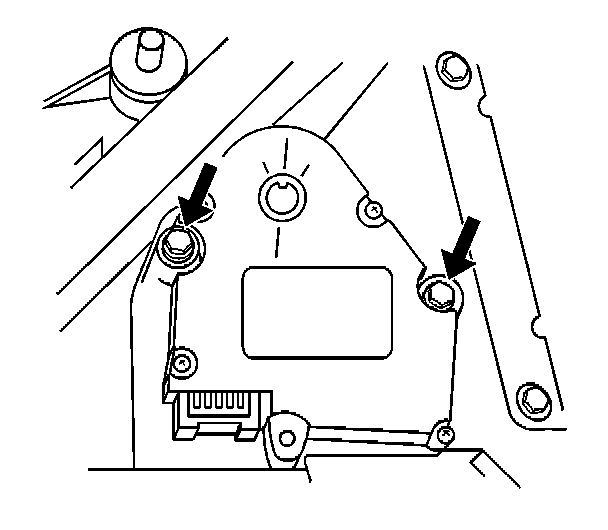

1. Install the actuator. Install the actuator screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).




2. Connect the temperature actuator electrical connector.
3. Install the instrument panel compartment.
