Engine Mount Replacement
Engine Mount ReplacementRemoval Procedure
1. Remove the cruise control module.

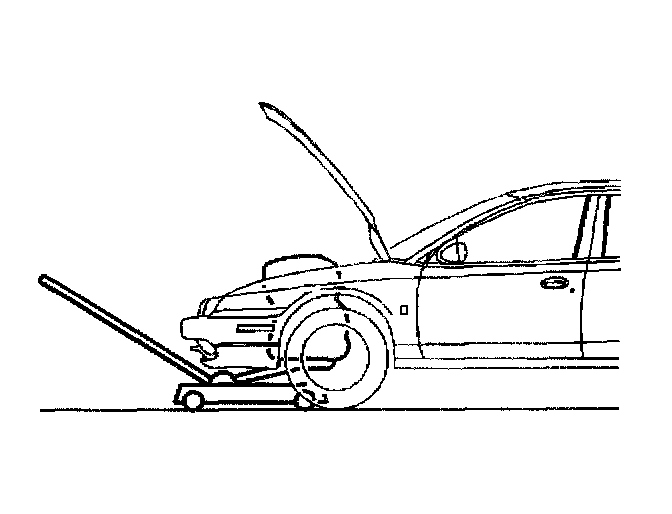

2. Support the engine at the oil pan with a floor jack and a block of wood.

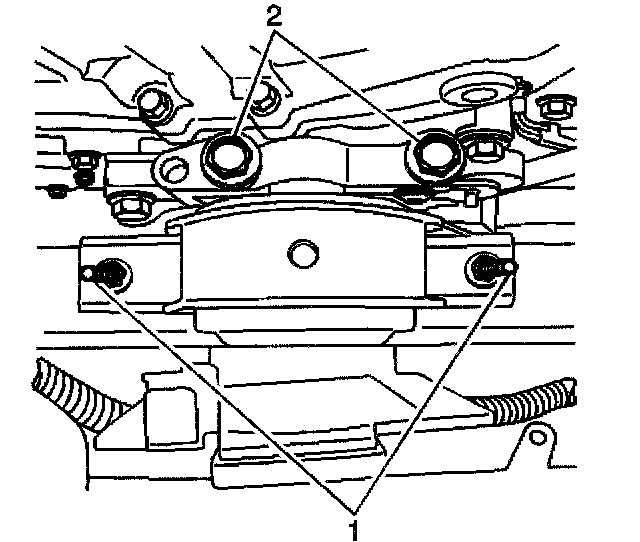

3. Remove the engine mount to body nuts (1).
4. Remove the engine mount to bracket bolts (2).
5. Remove the engine mount.
Installation Procedure

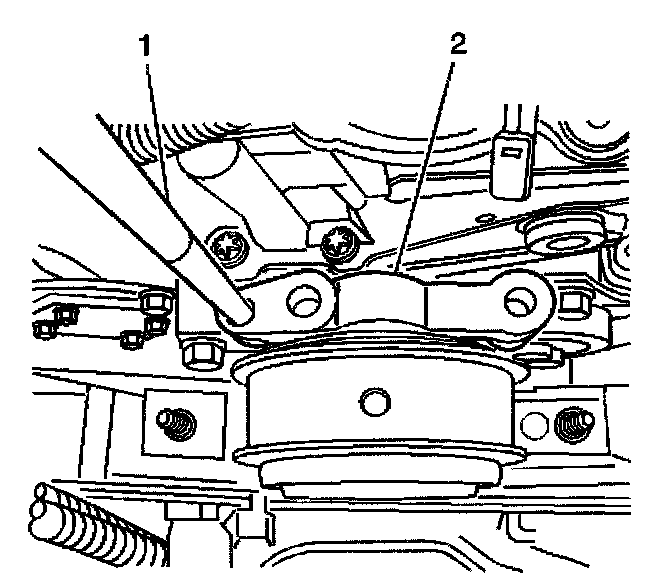

1. Using a dowel (1), align the engine mount (2) to the engine mount bracket.

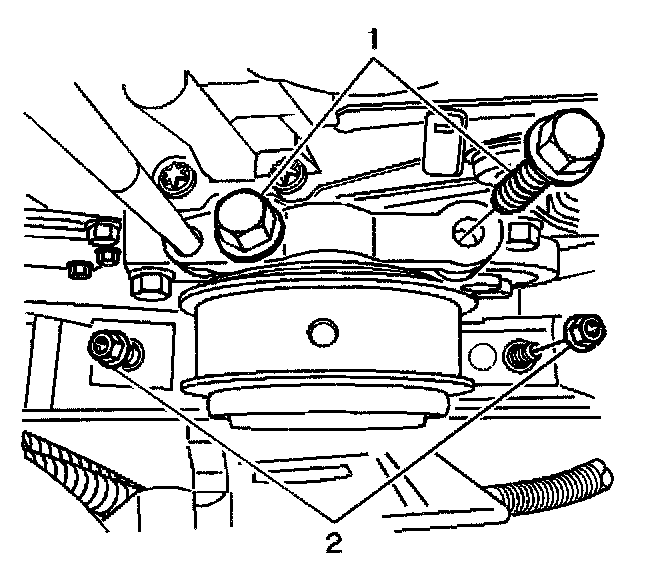

2. Install the engine mount nuts (1).
Notice: Refer to Fastener Notice in Cautions and Notices.
3. Install the engine mount bolts (2).
^ Tighten the engine mount nuts to 66 Nm (49 ft. lbs.).
^ Tighten the engine mount bolts to 110 Nm (81 ft. lbs.).
4. Install the cruise control module.
