Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

Removal Procedure





1. Remove engine mount.

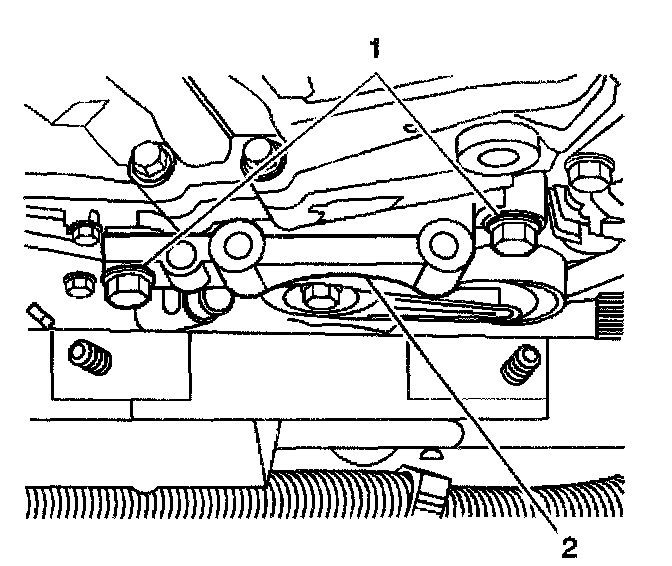

2. Remove engine mount bracket bolts (1)
3. Remove engine mount bracket from the vehicle.

Installation Procedure





1. Install the engine mount bracket to the vehicle (2).
2. Install the engine mount bracket bolts (1).

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the engine mount bracket bolts.
^ Tighten the bolts to l10 Nm (81 ft. lbs.).
4. Install the engine mount.
