Home
>>
Pontiac
>>
2004
>>
Grand AM L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Traction Control Switch
Traction Control Switch

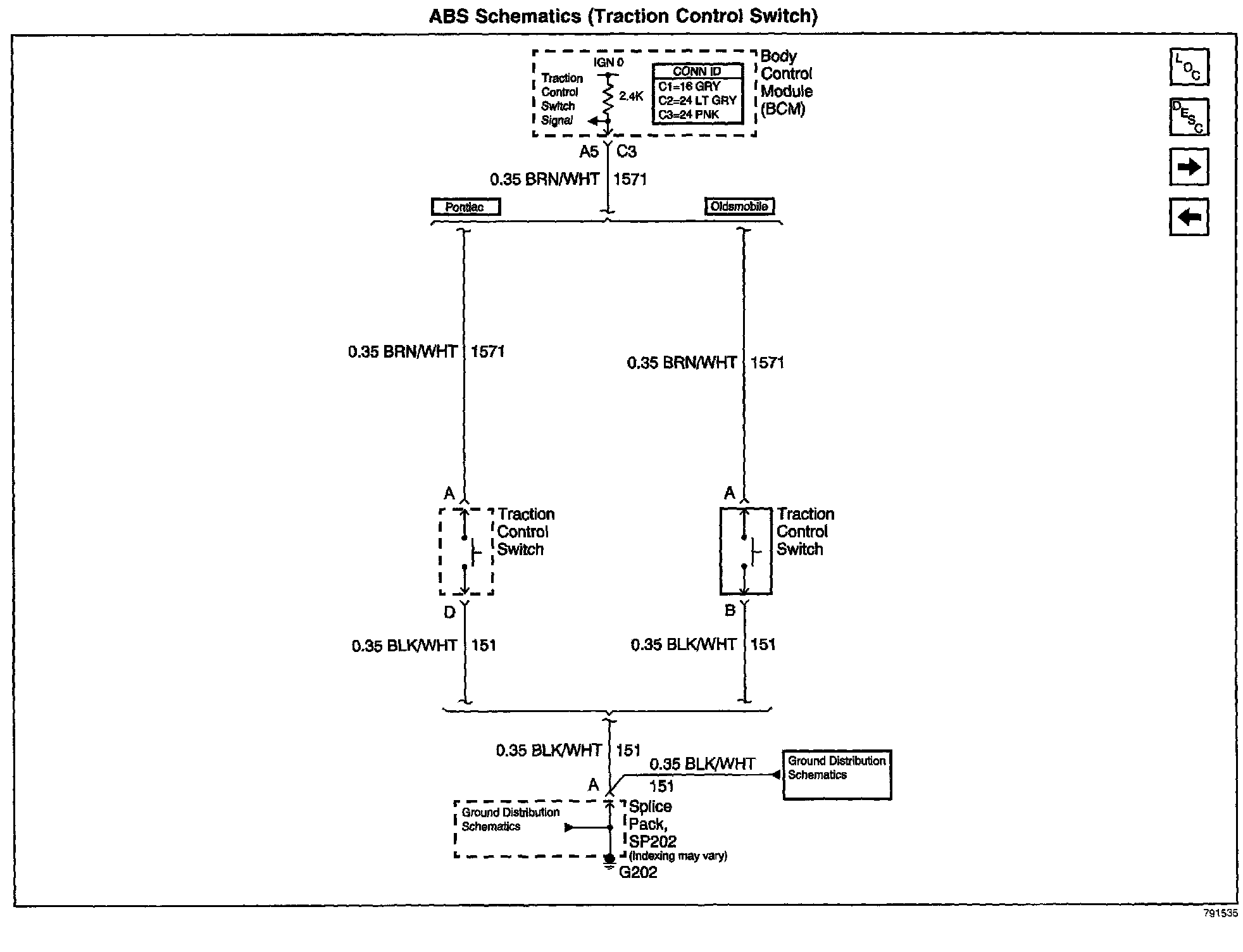

ABS Schematics: Traction Control Switch:
