Brake Drum Replacement

Brake Drum Replacement

^ Tools Required
^ J 41013 Rotor/Drum Flange Resurfacing Kit
^ J 42450-A Hub Cleaning Kit

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Mark/index the relationship of the wheel to the axle flange.
3. Remove the tire and wheel assembly.
4. Index the relationship of the drum to the axle flange.

Notice: Do not pry against the splash shield or backing plate in attempt to free the drum. This will bend the splash shield or backing plate. A bent backing plate may cause brake chatter and/or pulsation.

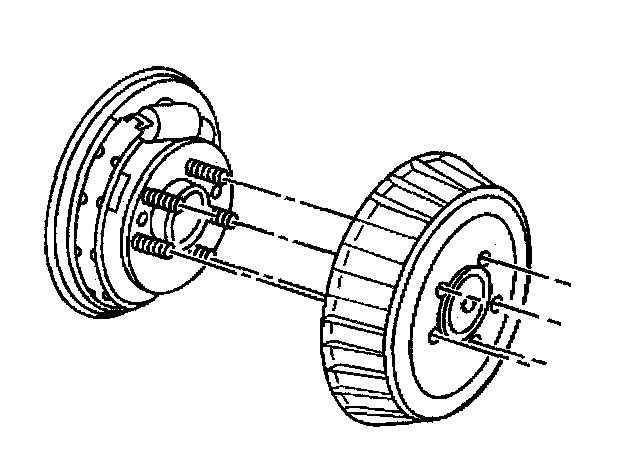

5. Remove the brake drum. Complete the following steps if difficulty is encountered when removing the brake drum:
5.1. Remove the retainer clips.
5.2. Verify that the parking brake is released.
5.3. Use a rubber mallet in order to tap gently on the outer rim of the drum and/or around the inner drum diameter by the spindle. Do not use excessive force, which may deform the drum.

Installation Procedure





1. Use the J 42450-A to clean the hub.
2. Clean the mating surface on the inside of the brake drum. Using the J41013.
3. Install the brake drum. Align the marks made during the brake drum removal.
4. Install the tire and wheel assembly.
5. Lower the vehicle.
