Brake Pads Replacement - Rear

Brake Pads Replacement- Rear

Removal Procedure

Caution: Refer to Brake Dust Caution in Service Precautions.
Brake Dust Caution


1. Inspect the fluid level in the brake master cylinder reservoir.
2. If the brake fluid level is midway between the maximum full point and the minimum allowable level, then no brake fluid needs to be removed from reservoir before proceeding.
If the brake fluid level is higher than midway between the maximum full point and the minimum allowable level, then remove brake fluid to the midway point before proceeding.
3. Raise the vehicle. Refer to Vehicle Lifting.
Vehicle Lifting

4. Remove the tire and wheel assembly.
5. Hand tighten two wheel lug nuts to retain the rotor to the hub.

Important: It is not necessary to disconnect the brake hose from the caliper when replacing brake pads.







6. Remove the rear caliper.

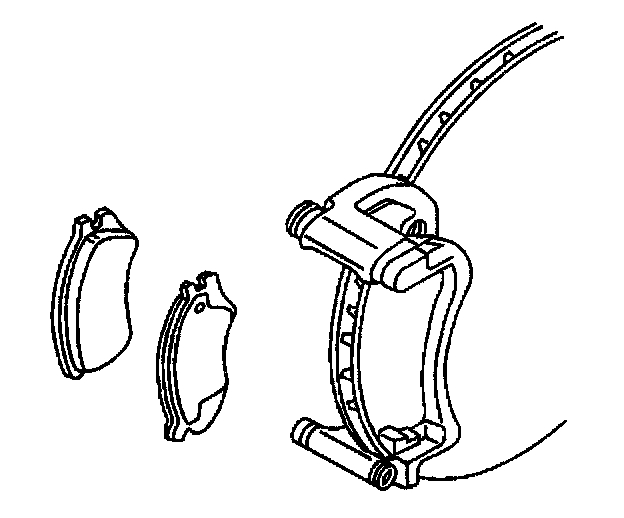

7. Remove the brake pads from the caliper bracket.

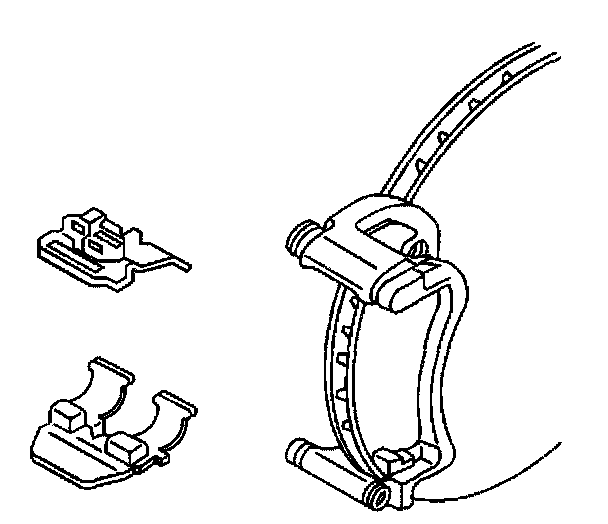

8. Remove the retainer slides from the caliper bracket.







9. Inspect the following parts for cuts, tears or deterioration. Replace any damaged parts
- The disc brake mounting and hardware.
- The caliper dust boot.

10. Inspect the caliper bolts (1, 3) for corrosion or, damage. If corrosion exists, use new components, including bushings, when installing the caliper. Do not attempt to polish away the corrosion.




Installation Procedure

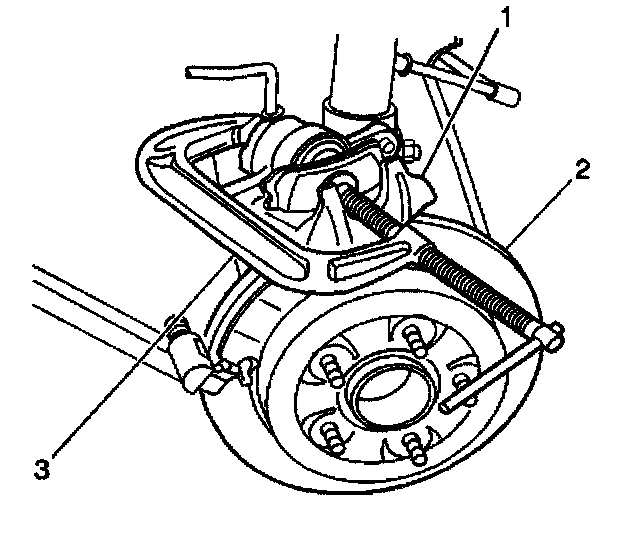

1. Bottom the piston into the caliper bore. Use an old brake pad or wooden block across the face of the piston. Use a C-clamp (3) over the caliper housing. Tighten the clamp slowly to drive the piston into the caliper bore. Do not damage the piston or the caliper boot.

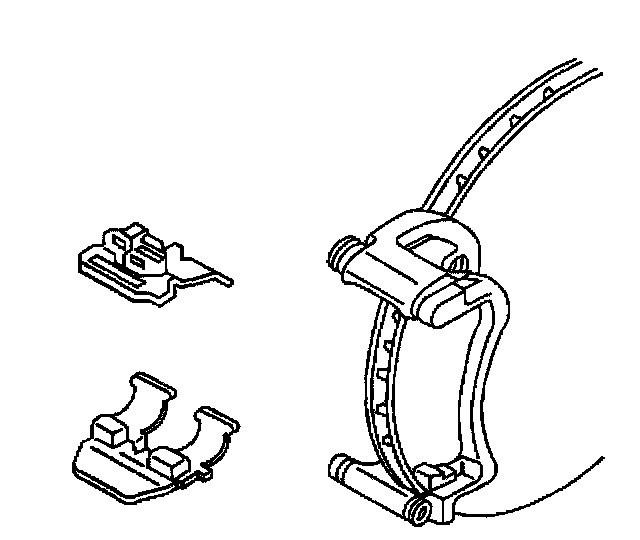

2. Install the 2 retainer slides to the caliper bracket.







3. Install the rear pads to the caliper bracket.
4. Lubricate the bolts and the bracket boots with GM P/N18010908 silicone grease or equivalent.
5. Install the caliper.
6. Remove the 2 hand tightened wheel lug nuts retaining the rotor to the hub.
7. Install the tire and wheel assembly.
8. Lower the vehicle.
9. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
10. Slowly release the brake pedal.
11. Wait 15 seconds, then repeat steps 9 and 10 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
12. Fill the master cylinder reservoir to the proper level.
13. Burnish the pads and rotors.
