Front Seat Cushion Replacement



Front Seat Cushion Replacement

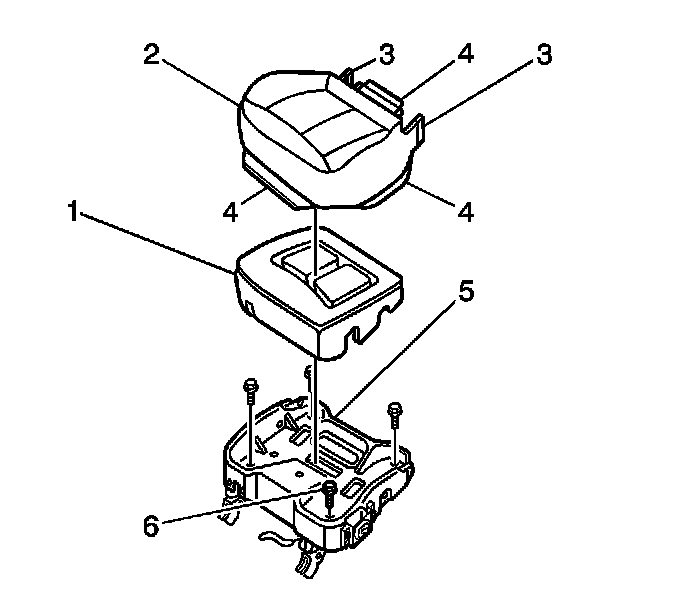

Removal Procedure




1. Remove the front seat.
2. Remove the cushion cover (2).
3. Remove the cushion pad (1) from the seat frame (5).

Installation Procedure




1. Install the cushion pad (1) to the seat frame (5).
2. Install the cushion cover (2).
3. Install the front seat.
