Rear Compartment Sill Trim Plate Replacement

Rear Compartment Sill Trim Plate Replacement

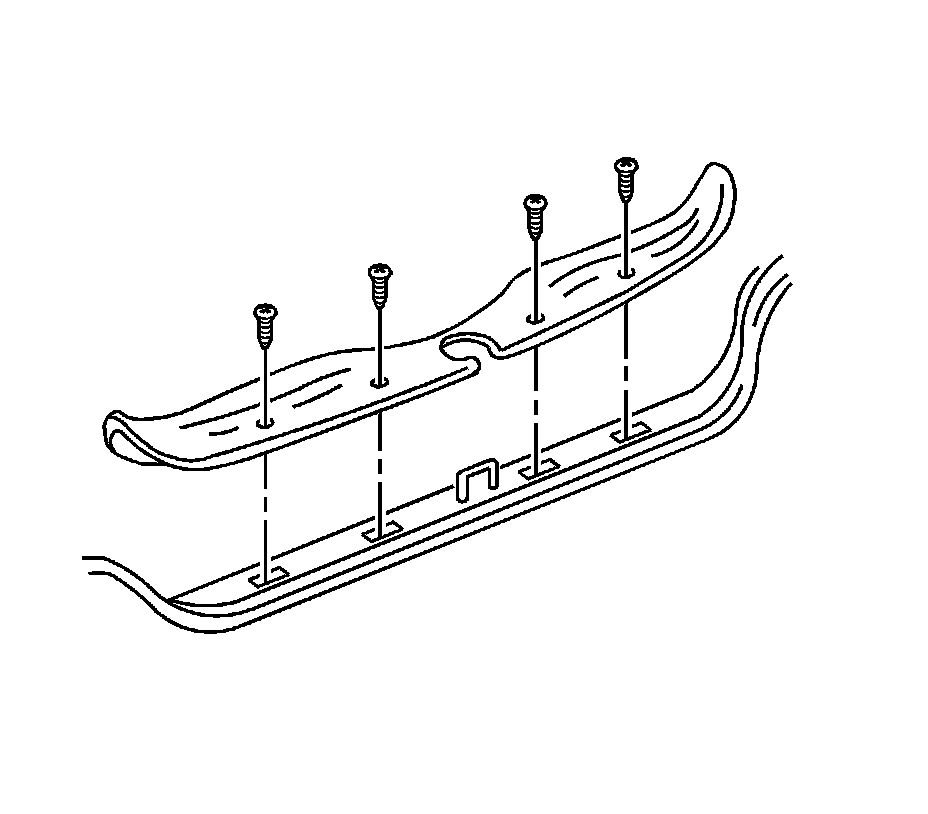

Removal Procedure




1. Open the rear compartment.
2. Remove the sill trim plate screws.
3. Lift up from the inside edge of the sill plate.
4. Remove the rear compartment sill plate.

Installation Procedure




1. Position the rear compartment sill plate.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the sill plate screws.

Tighten the screws to 1.9 N.m (17 lb in).

3. Close the rear compartment.
