Front Bumper Fascia Support Replacement

Front Bumper Fascia Support Replacement

Removal Procedure

1. Remove the front fascia Service and Repair.

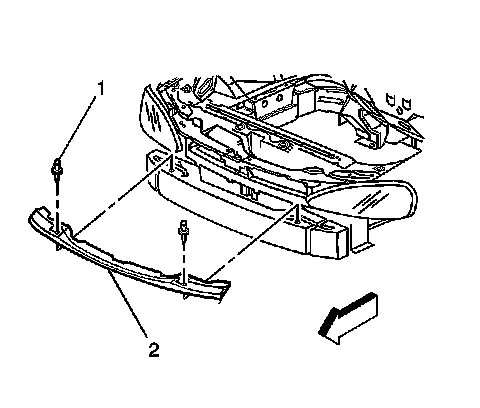

2. Remove the push-in retainers (1) from the fascia support (2).
3. Remove the fascia support (2) from the front bumper impact bar.

Installation Procedure






1. Position the front bumper fascia support (2) to the front bumper impact bar.
2. Install the fascia support push-in retainers (1) to the fascia support (2).
3. Install the front fascia Service and Repair.
