Speaker Replacement - Front Upper

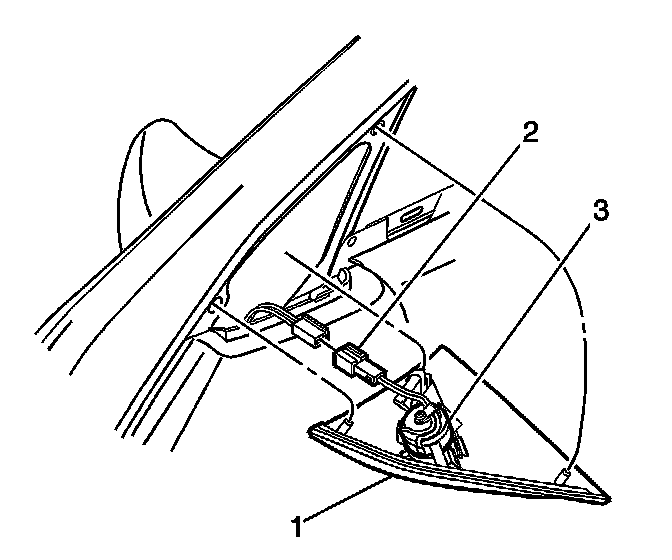

SPEAKER REPLACEMENT - FRONT UPPERREMOVAL PROCEDURE
1. Remove the front door trim panel insert (1).
2. Disconnect the electrical connector (2) from the speaker (3).
3. Remove the speaker (3) from the trim panel insert (1), using a flat-bladed tool to release the retainers.
IMPORTANT: Note the position of the speaker to the retainers before removal.

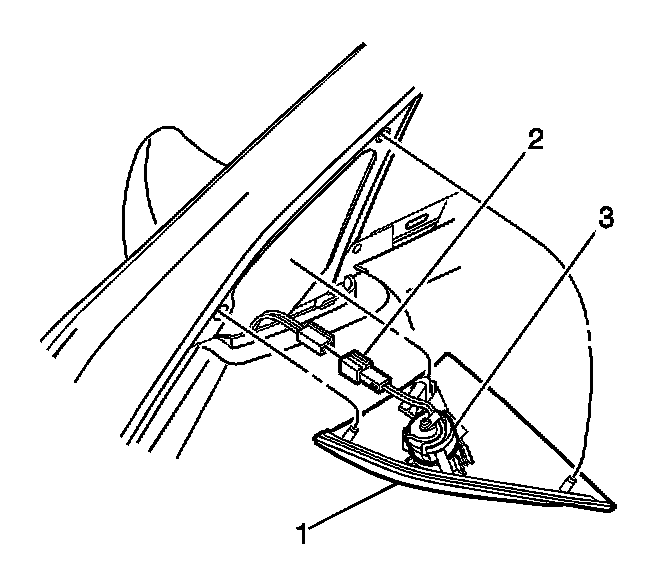

INSTALLATION PROCEDURE
1. Position the speaker (3) on the trim panel insert (1).
2. Install the speaker (3) pressing into the retainers until fully seated.
3. Connect the electrical connector (2) to the speaker (3).
4. Install the trim panel insert (1).
