Remote PS Fluid Reservoir Bracket Replacement
Remote PS Fluid Reservoir Bracket ReplacementRemoval Procedure

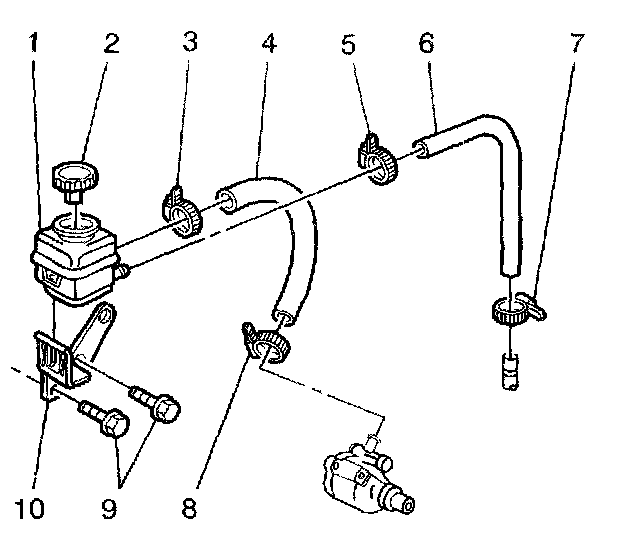

1. Use a flat blade tool in order to release the tab on the bracket (10) that retains the power steering fluid reservoir (1). Lift the reservoir up amid away from the tab
2. Move the reservoir to the side.
3. Remove the 2 bolts (9) that retain the bracket to the engine.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.

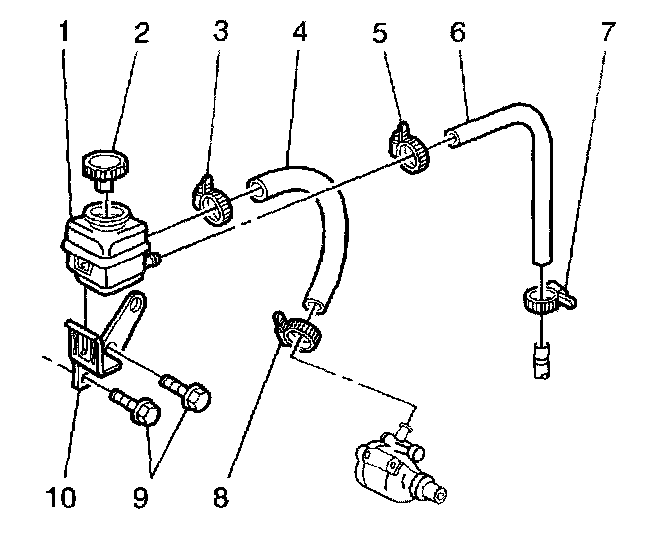

1. Install the bracket (10) anti the 2 bolt (9) to the engine.
^ Tighten the bolts to 50 Nm (37 ft. lbs.)
2. Slide the power steering fluid reservoir (1) onto the bracket. Verify the tab on the bracket retains the reservoir
