Canister Purge Control Valve: Service and Repair

Evaporative Emission (EVAP) Canister Purge Valve Replacement

Removal Procedure

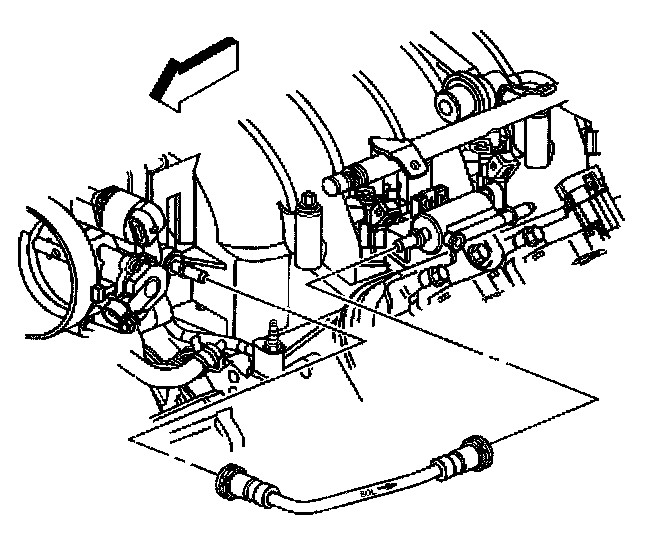

1. Disconnect the EVAP engine vacuum pipe from the EVAP canister purge pipe.






2. Disconnect the engine compartment EVAP pipe at the EVAP canister purge valve.

3. Disconnect the EVAP canister purge valve harness.

4. Remove the EVAP canister purge valve.






Installation Procedure

1. Install the EVAP canister purge valve to the bracket.

2. Connect the electrical connector to the EVAP canister purge valve.






3. Connect the engine compartment EVAP pipe at the EVAP canister purge valve.

4. Connect the engine vacuum pipe to the EVAP canister purge valve.
