Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Diagrams

A/C Signal: Diagrams

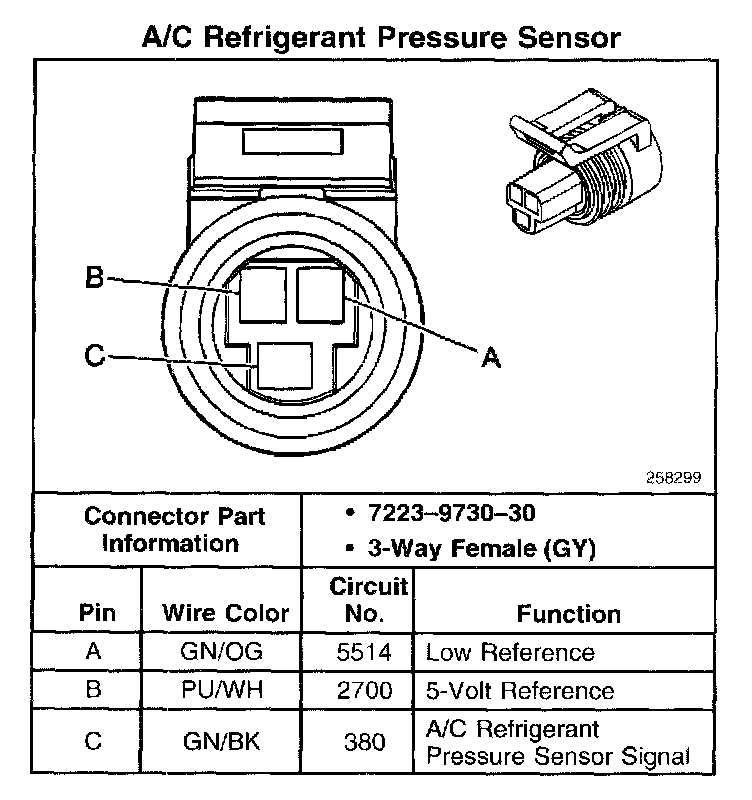

A/C Refrigerant Pressure Sensor:
