Pontiac
>>
2004
>>
GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G400
G400

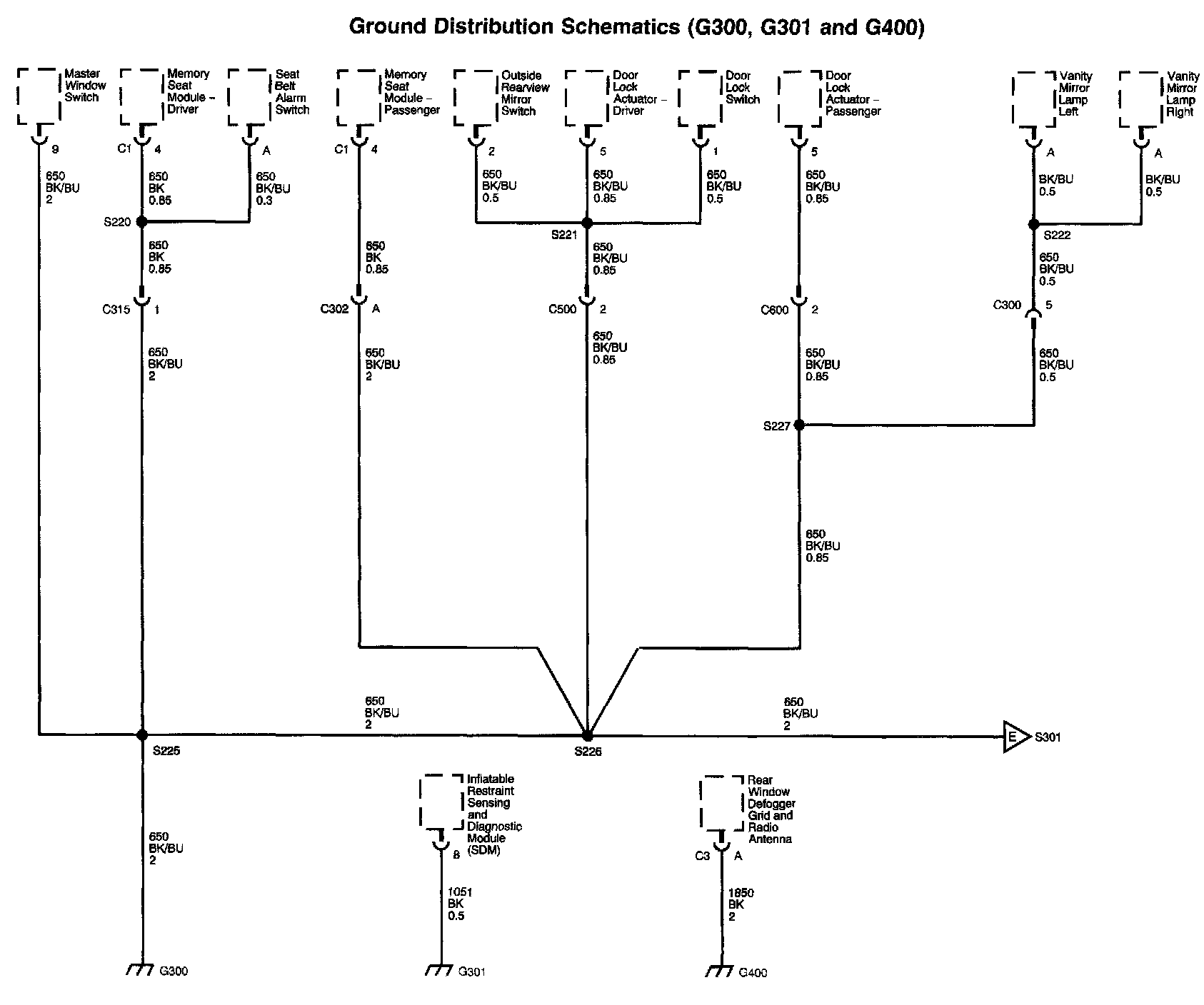

Ground Distribution Diagram 7:
