Removal

COMPRESSOR PRESSURE RELIEF VALVE REMOVAL

Tools Required
J 41790 A/C Compressor Holding Fixture

1. Remove the A/C compressor from the vehicle.

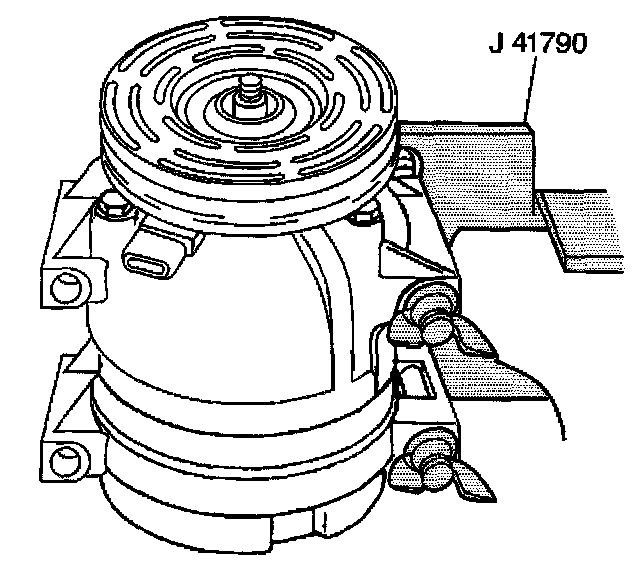

2. Clamp the J41790 in a vise and attach the A/C compressor to the J 41790.

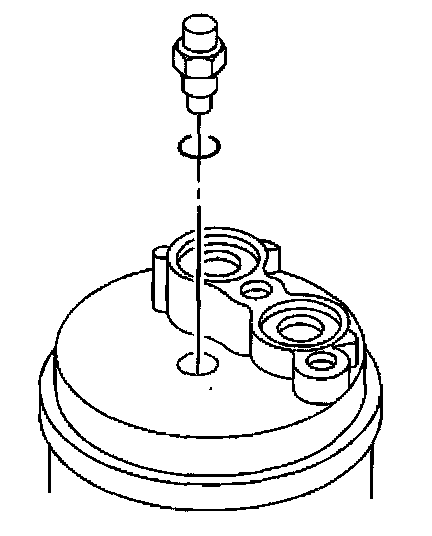

3. Remove the pressure relief valve from the rear head of the A/C compressor.
