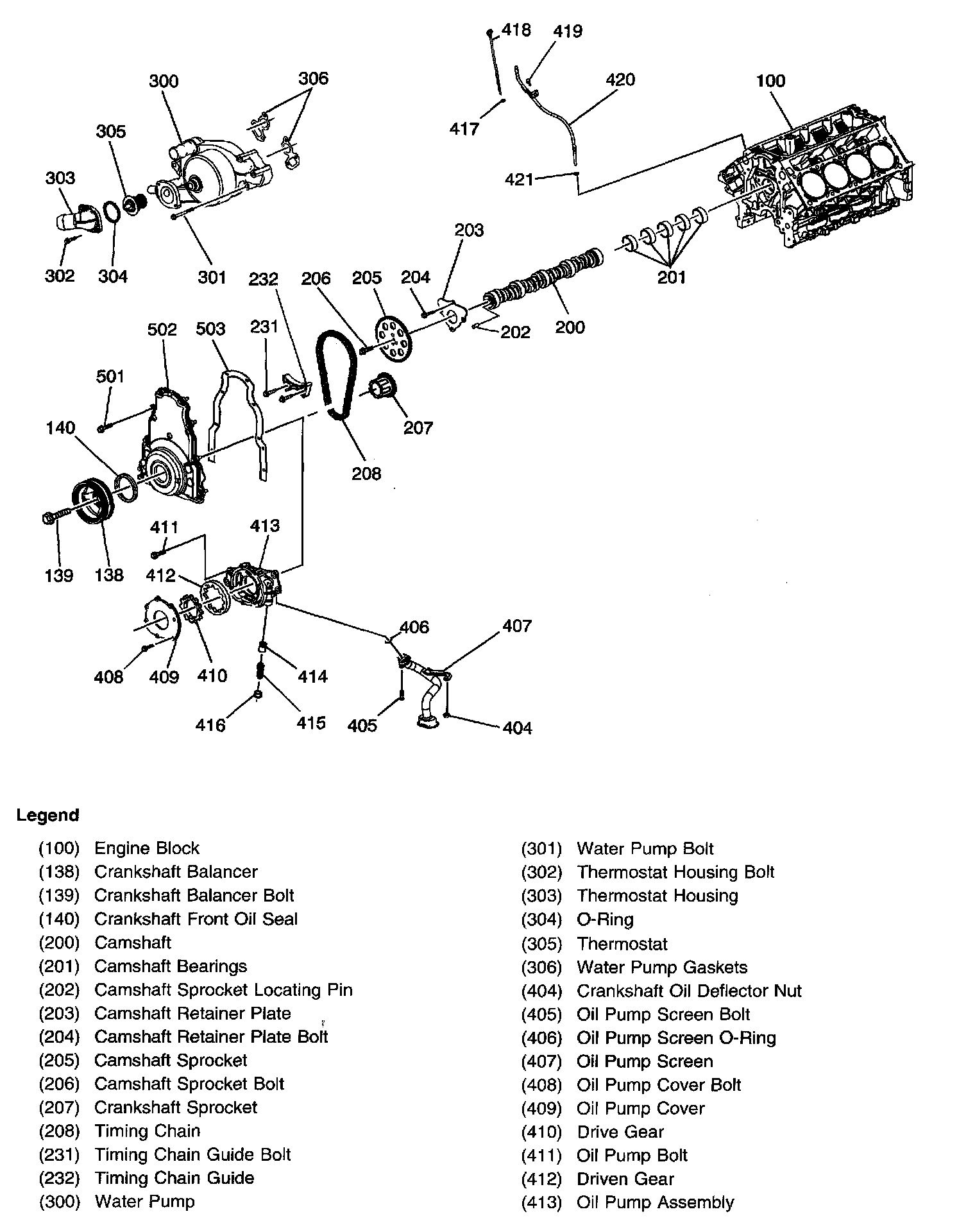

Exploded Views
>>
Engine
>>
Engine Components
Engine Components
Engine
Front of Engine
Rear of Engine
Lower Engine Assembly
