Home
>>
Pontiac
>>
2004
>>
GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body and Frame
>>
Doors
Doors
Power Window Diagram:

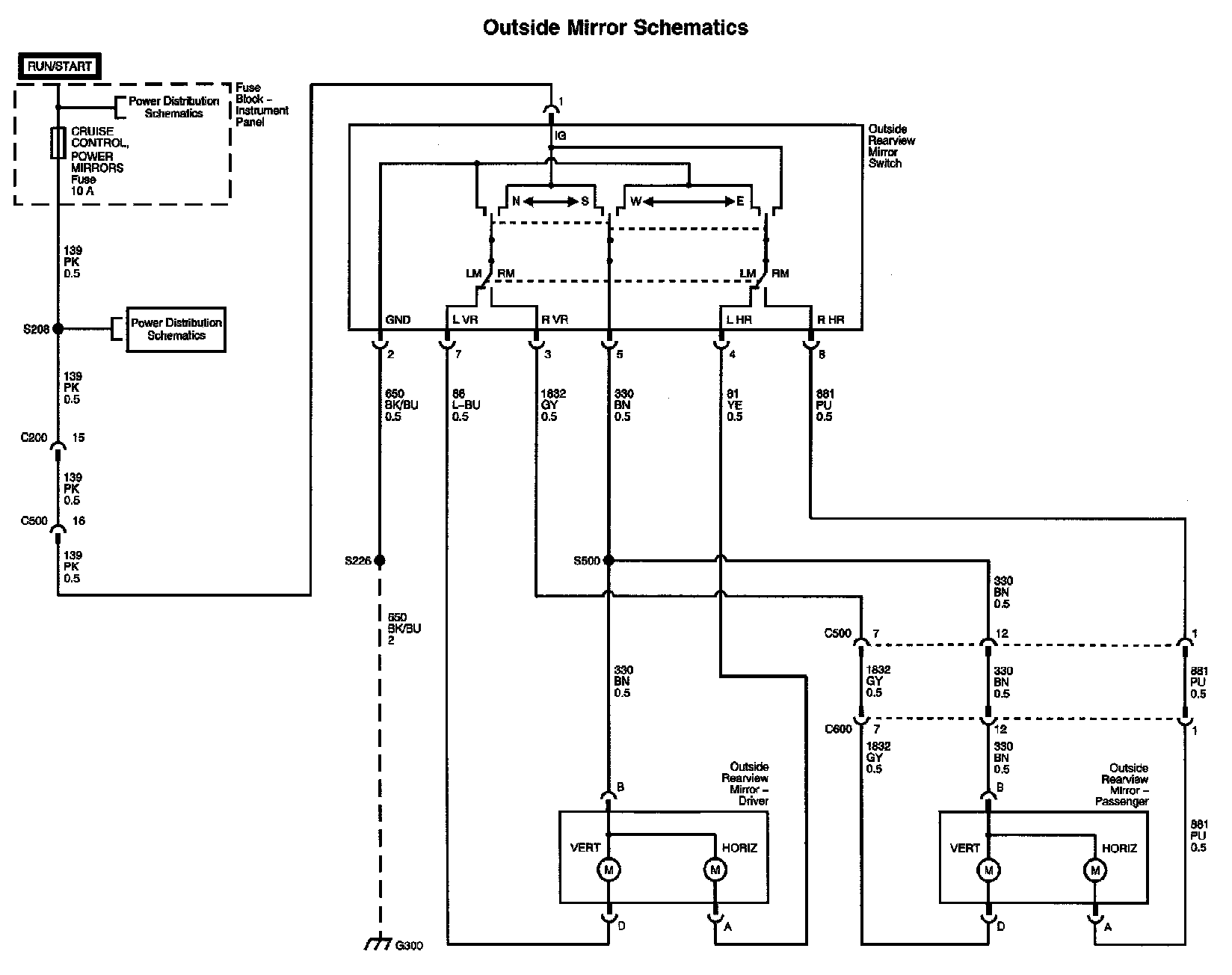

Outside Mirror Diagram:
