Information Bus
Information Bus

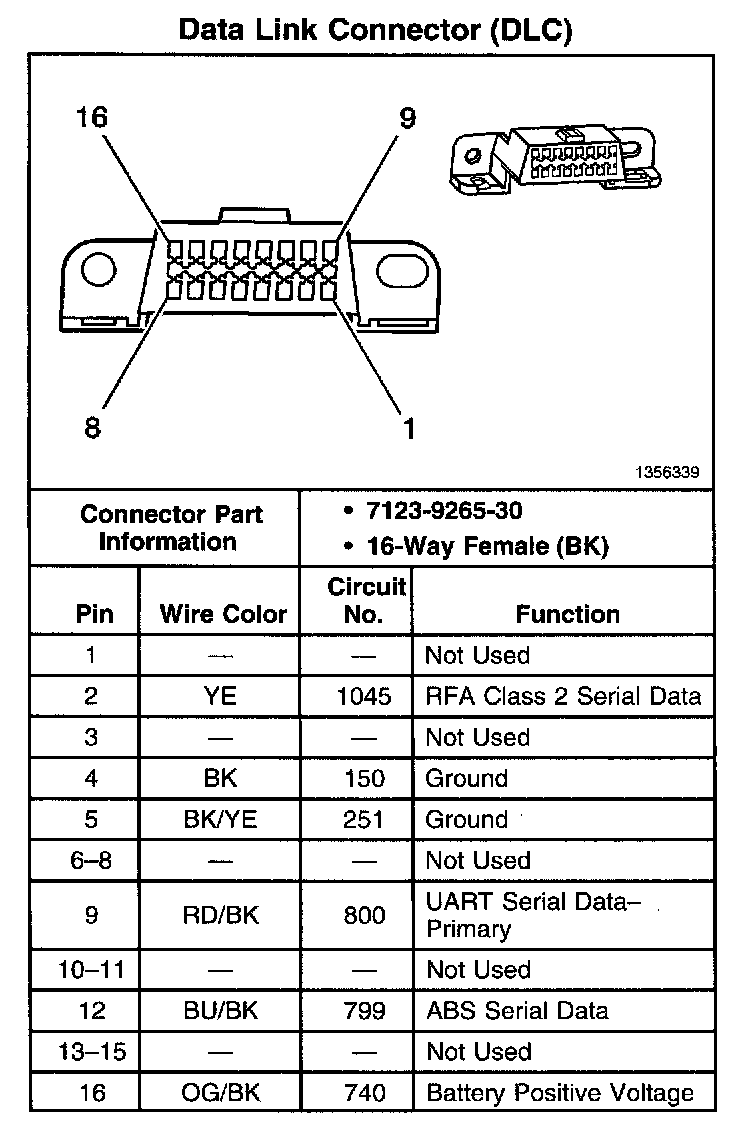

Data Link Connector (DLC):
Data Link Connector (DLC):

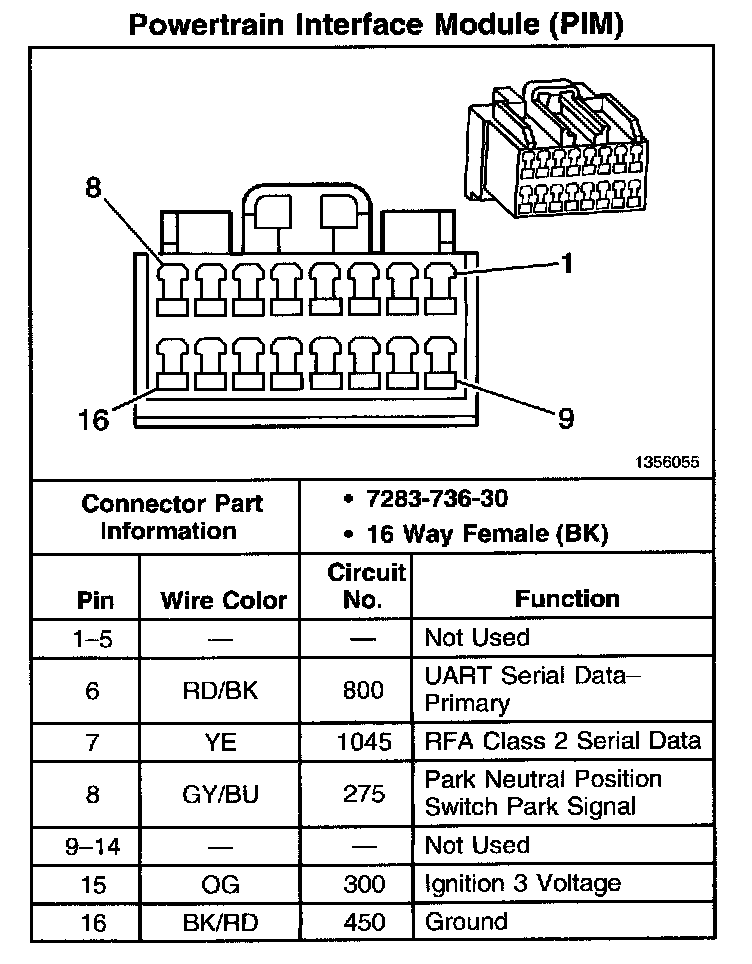

Powertrain Interface Module (PIM):
Data Link Connector:
