Home
>>
Pontiac
>>
2004
>>
GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Schematic and Routing Diagrams

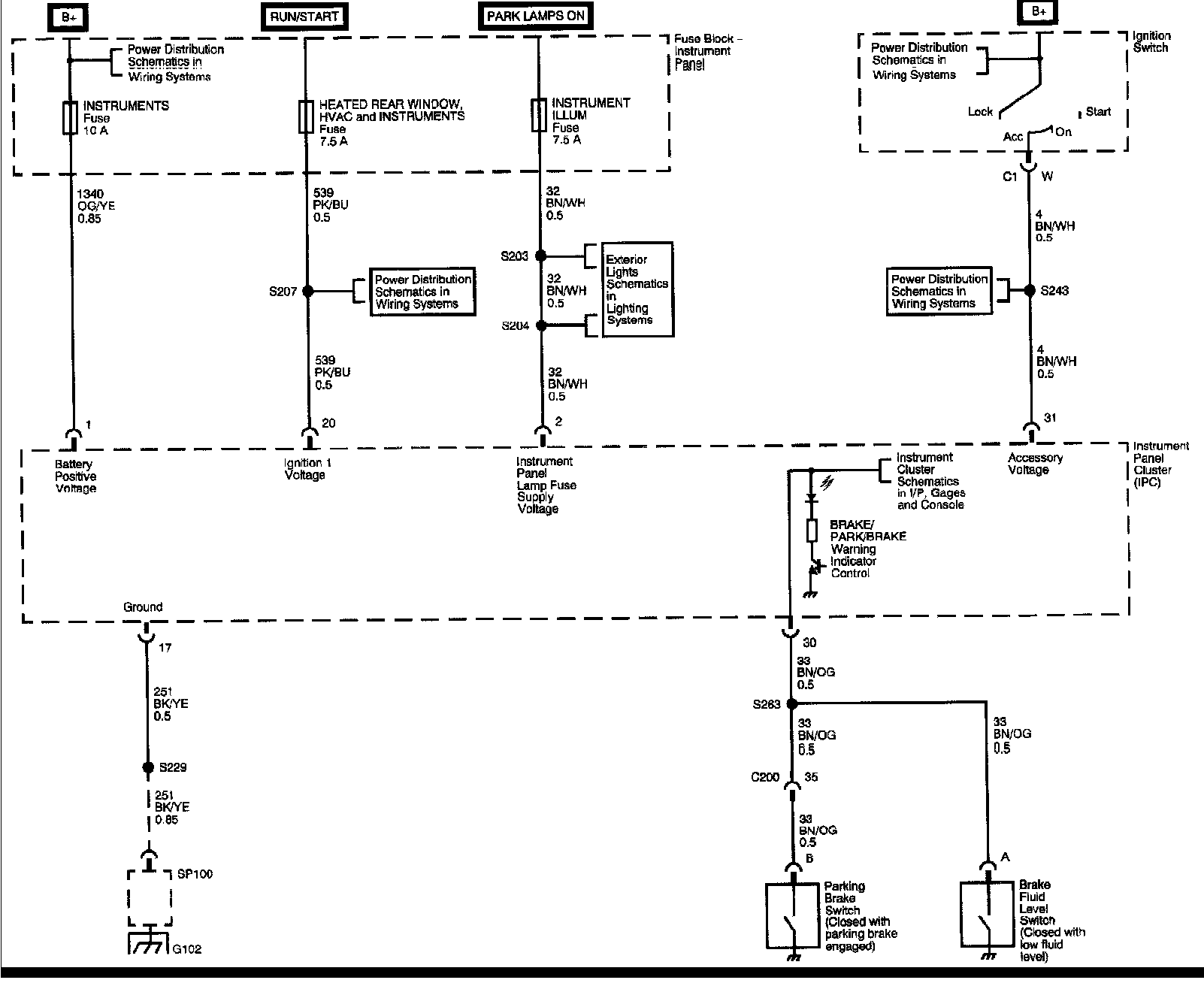

Brake Warning System Diagrams
