Pontiac
>>
2004
>>
GTO V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

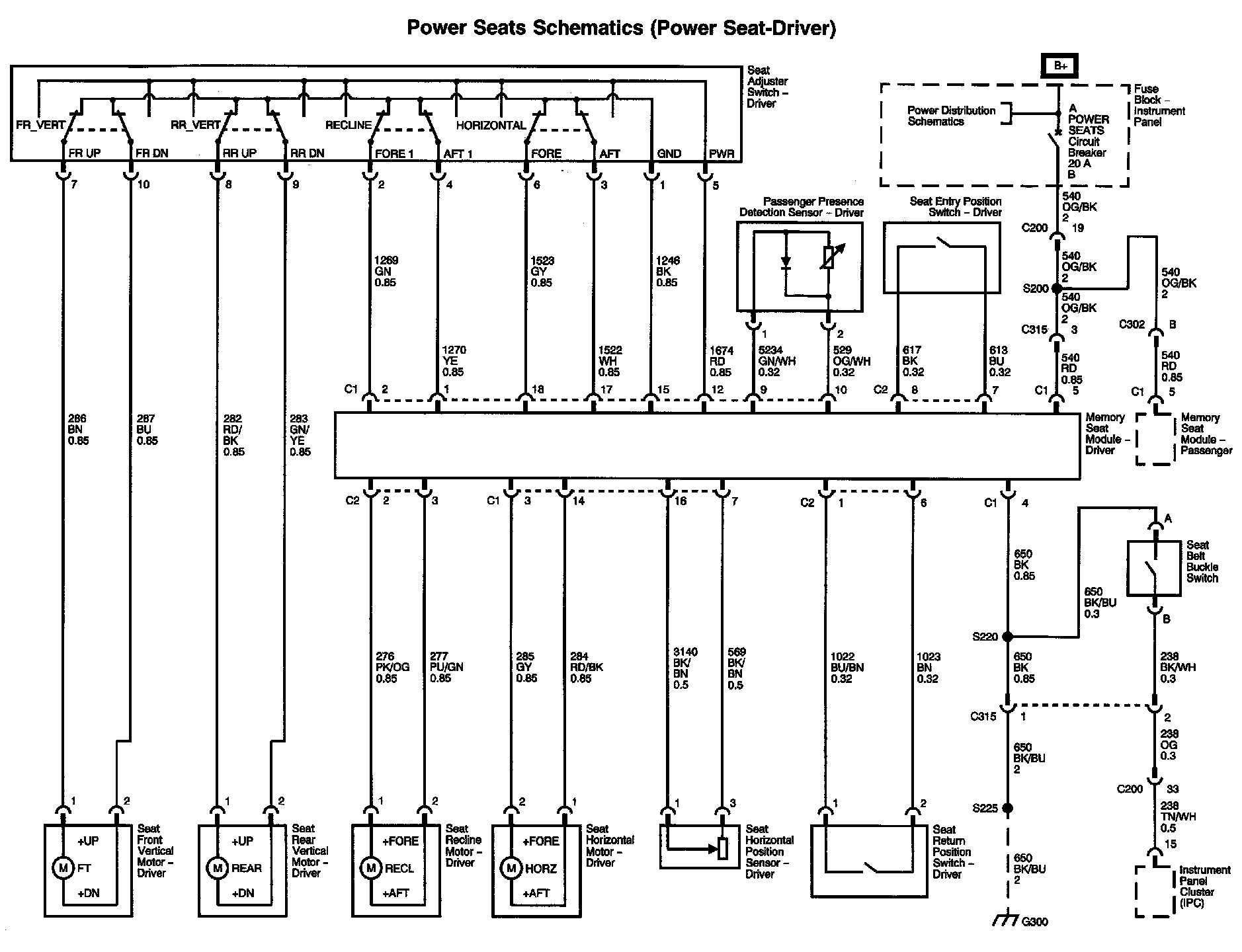

Power Seats (Driver) Diagram:

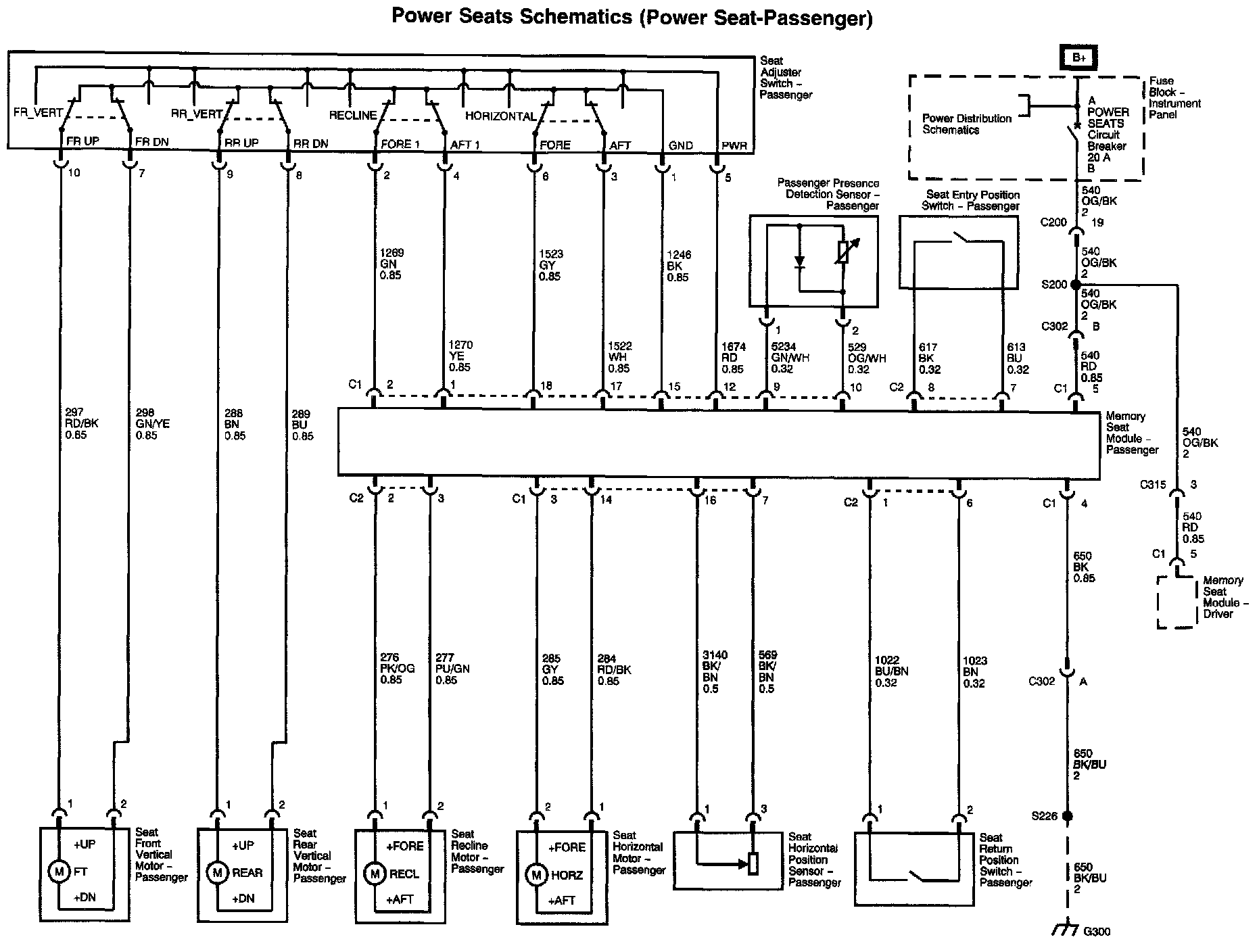

Power Seats (Passenger) Diagram:
