Repair Instructions License Bracket Replacement - Front

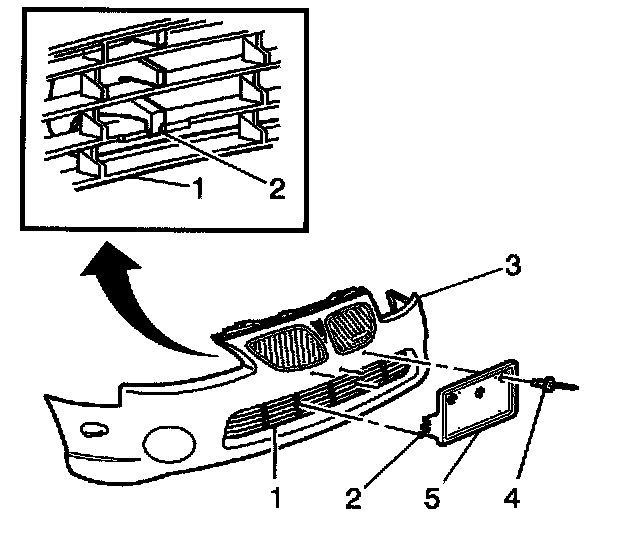

Removal Procedure
1. Drill out the rivets (4) that retain the bracket (5) to the front fascia (3).
2. Pull the bracket (5) away from the fascia (3) carefully, disengaging the clips (2) from the lower fascia grille (1).

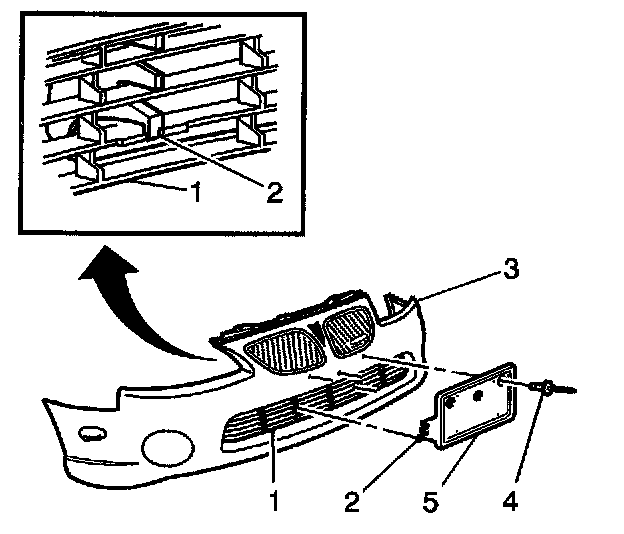

Installation Procedure
1. Drill 3 new holes in the front fascia using a drill jig, if a new front fascia has been installed.
2. Position the bracket (5) to the front fascia (3), ensuring the clips (2) engage to the lower fascia grille (1).
3. Install 3 new rivets (4) to secure the bracket (5) to the front fascia (3).
