Impact Bar Replacement

Impact Bar Replacement - Rear Bumper







Removal Procedure
1. Remove the rear bumper fascia.
2. Remove the rear energy absorber.

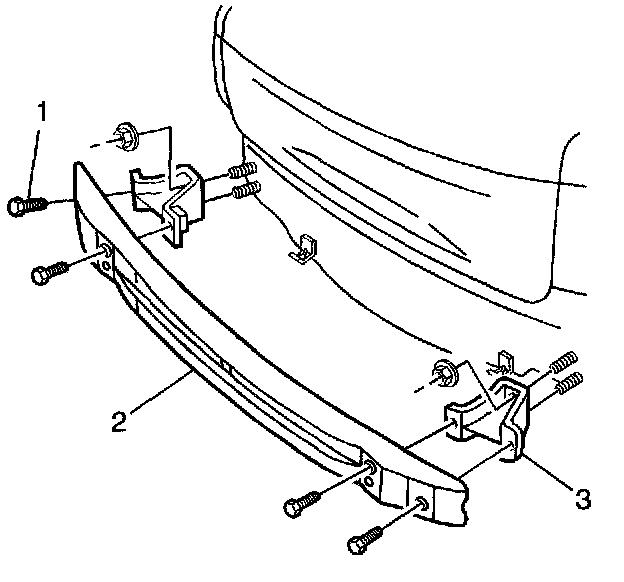

3. Remove the 4 bolts (1) attaching the rear bumper impact bar (2) to the rear bumper impact bar brackets (3).
4. Remove the rear bumper impact bar (2) from the vehicle.







Installation Procedure

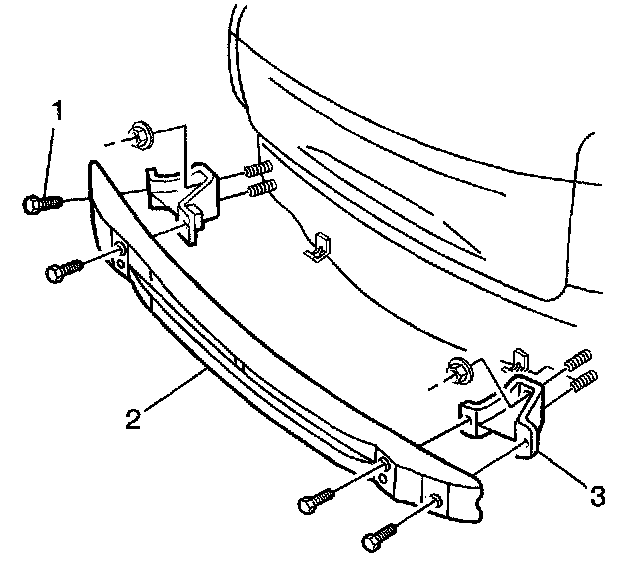

1. Align the rear bumper impact bar (2) to the rear bumper impact bar brackets (3).

Notice: Refer to Fastener Notice in Cautions and Notices.
Fastener Notice

2. Install the 4 bolts (1) attaching the rear bumper impact bar (2) to the rear bumper impact bar brackets (3).

Tighten the rear bumper impact bar bolts to 44 N.m (32 lb ft).

3. Install the rear energy absorber.
4. Install the rear bumper fascia.
