Energy Absorber Replacement

Energy Absorber Replacement - Rear Bumper







Removal Procedure

1. Remove the rear bumper fascia.

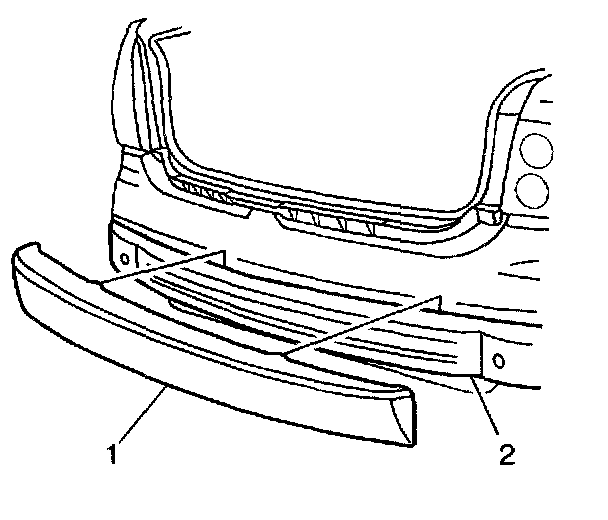

2. Remove the rear bumper energy absorber (1) from the rear impact bar (2) by disconnecting the two clips.








Installation Procedure

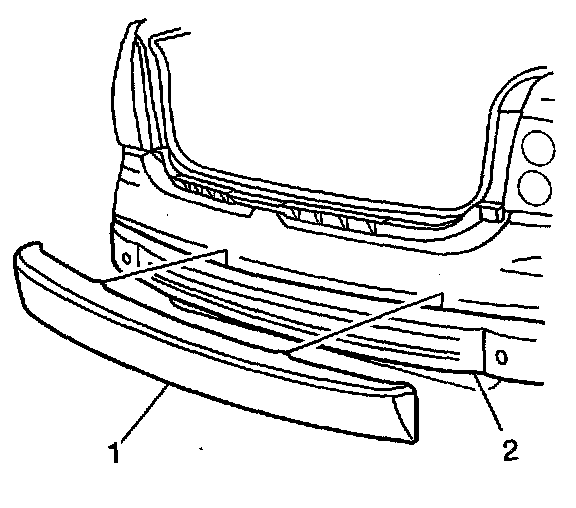

1. Position the rear bumper energy absorber (1) to the rear impact bar (2) ensuring that the clips engage over the impact bar flange.
2. Install the rear bumper fascia.
