Fascia Support Replacement

Fascia Support Replacement - Front Bumper / Upper

Removal Procedure
1. Remove the front bumper fascia.

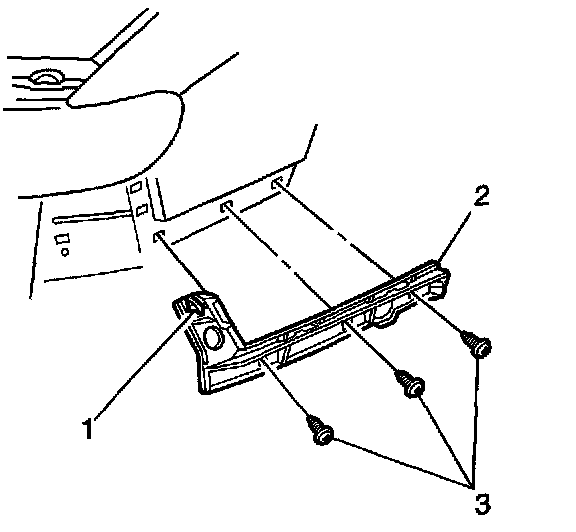

2. Remove the 3 screws (3) attaching the fascia support (2).
3. Using a flat-bladed tool, unclip the retaining tab (1) from the sheet metal.
4. Pull the fascia support (2) out to detach it from the vehicle.








Installation Procedure
1. Align the fascia support (2) to the slots in the fender while pushing in slightly.

Notice: Refer to Fastener Notice in Cautions and Notices.
Fastener Notice

2. Install the front bumper fascia upper support screws (3).

Tighten the screws to 2 N.m (18 lb in).

3. Install the front bumper fascia.
