Speaker Replacement - Front Door
SPEAKER REPLACEMENT - FRONT DOORRemoval Procedure
1. Ensure that the radio is turned off.
2. Remove the door trim panel.

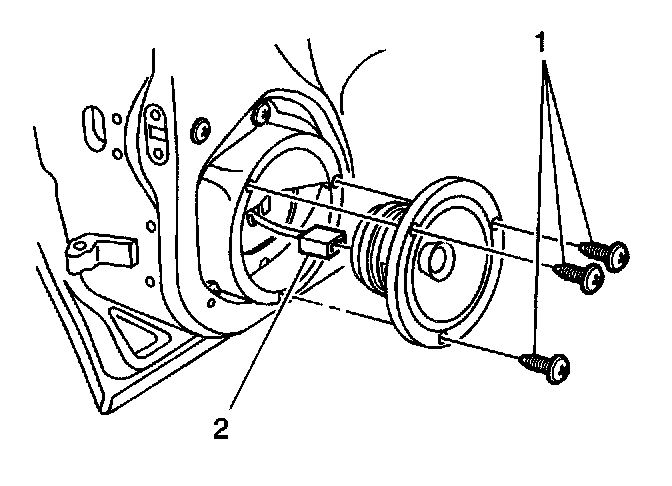

3. Remove the door speaker-to-speaker box retaining screws (1).
4. Remove the speaker from the speaker box.
5. Disconnect the speaker electrical connector (2).
6. Remove the speaker from the vehicle.
Installation Procedure
1. Position the speaker in the vehicle.
2. Connect the speaker electrical connector (2)
NOTICE: Refer to Fastener Notice in Service Precautions.

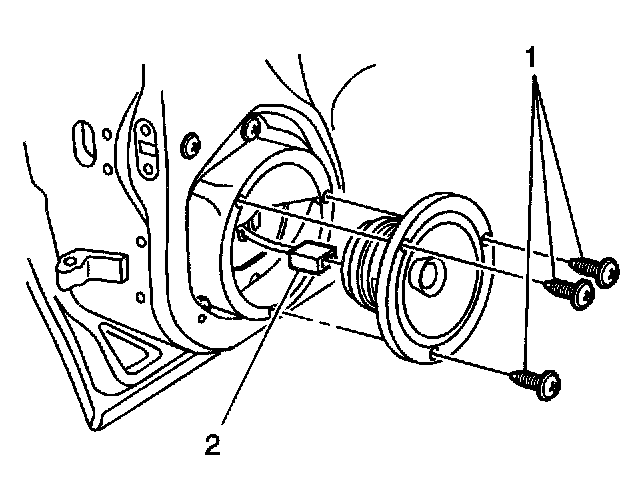

3. Install the door speaker-to-speaker box retaining screws (1).
Tighten
Tighten the speaker retaining screws to 2 N.m (18 Ib in).
4. Install the door trim panel.
