Pontiac
>>
2003
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Transmission Internal Mode Switch Logic
Transmission Internal Mode Switch Logic

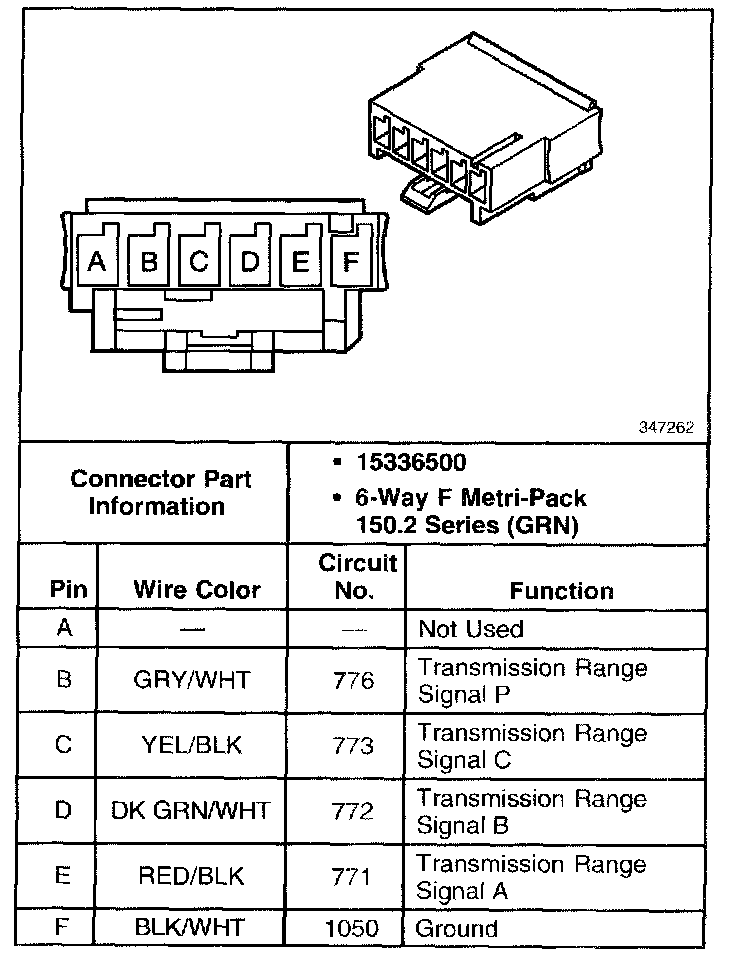

Transmission Internal Mode Switch Connector, Wiring Harness Side:
