Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Relay
Power Seat Relay

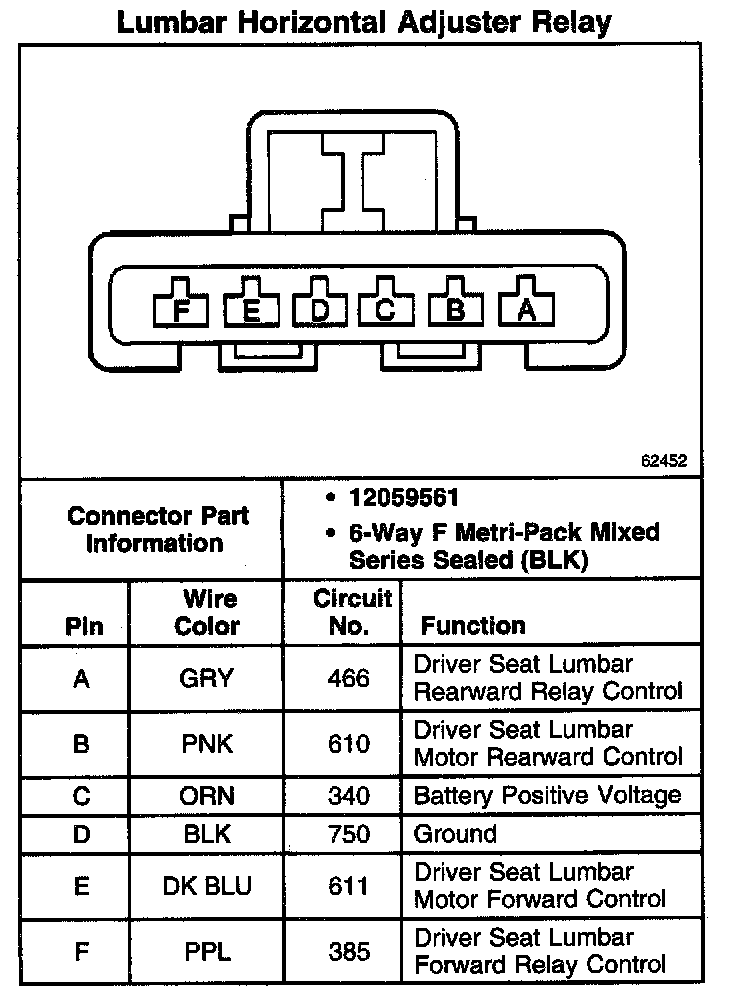

Lumbar Horizontal Adjuster Relay:

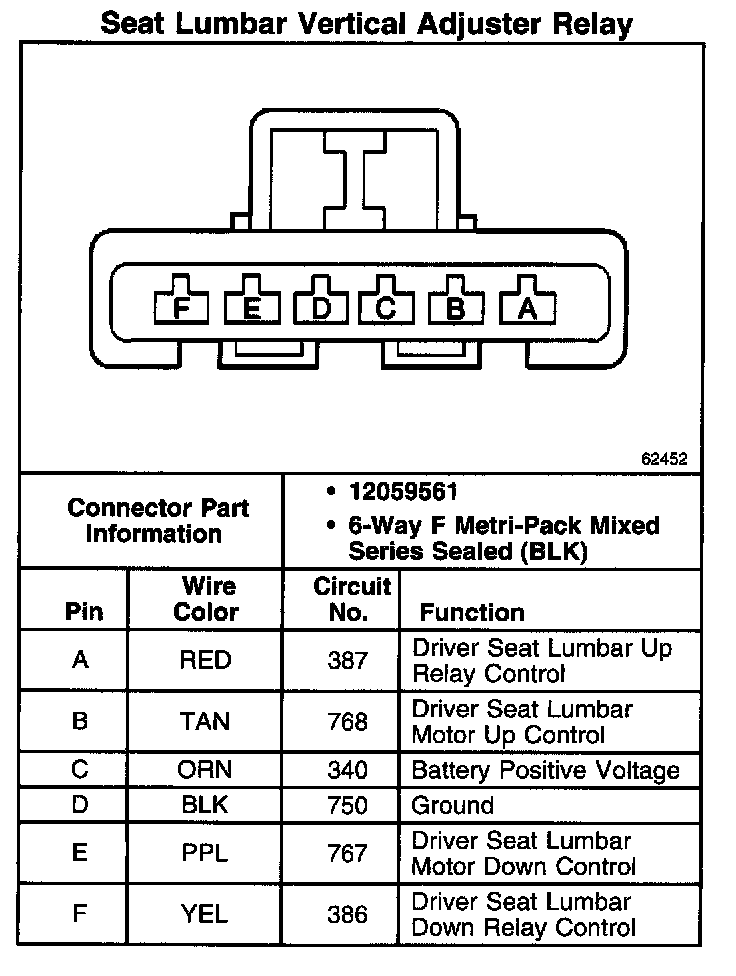

Seat Lumbar Vertical Adjuster Relay:
