Home >> Pontiac >> 2001 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> BI-Fuel/Alternative Fuels >> Fuel Controls, Lock-Off Solenoid

Fuel Controls, Lock-Off Solenoid

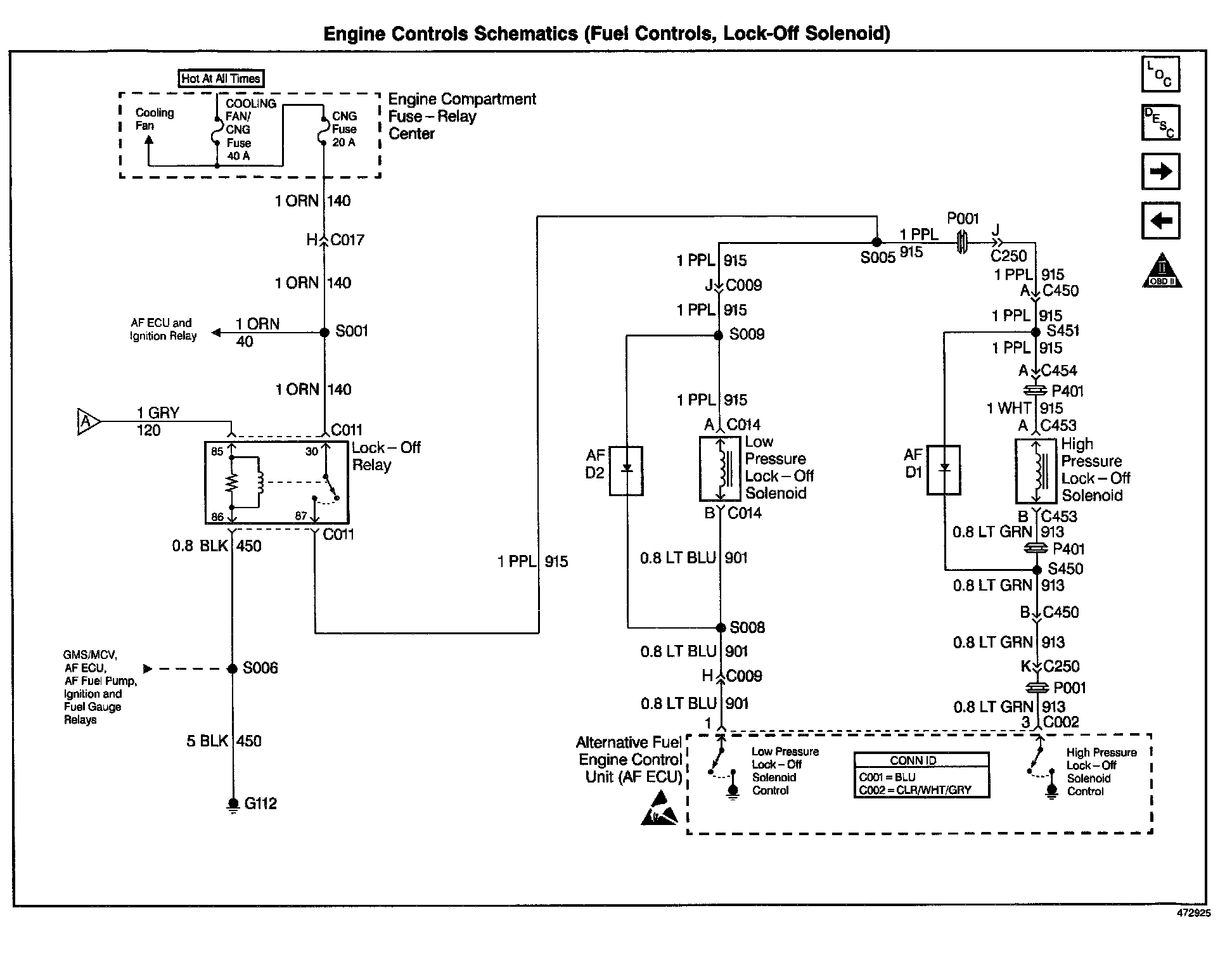

Engine Controls Schematics: Fuel Controls, Lock-Off Solenoid - BI-Fuel/Alternative Fuels:
