Home >> Pontiac >> 2001 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram

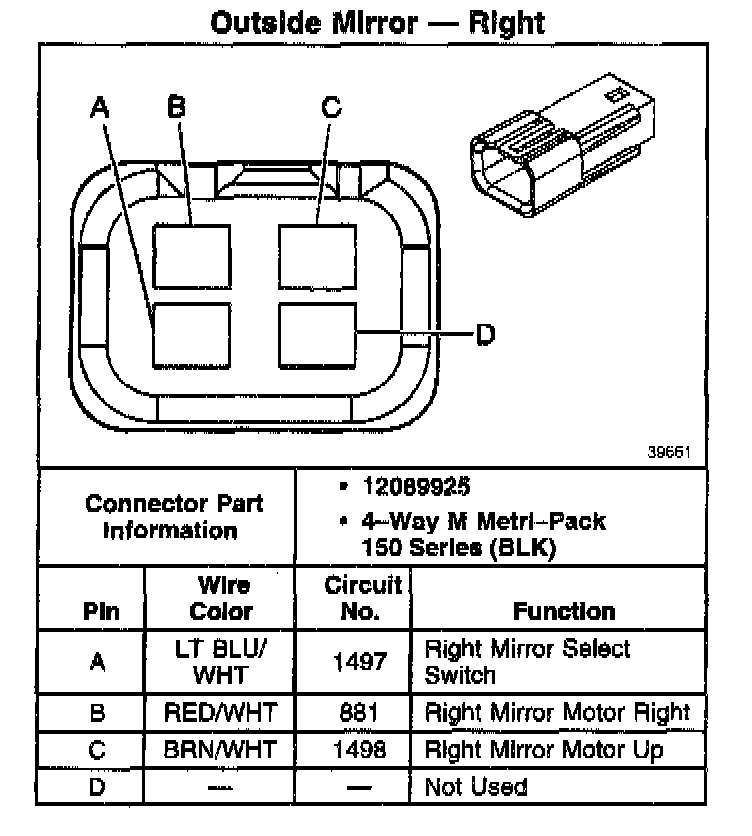

Outside Mirror - Right:
