Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
BCM Inputs and Outputs
BCM Inputs and Outputs

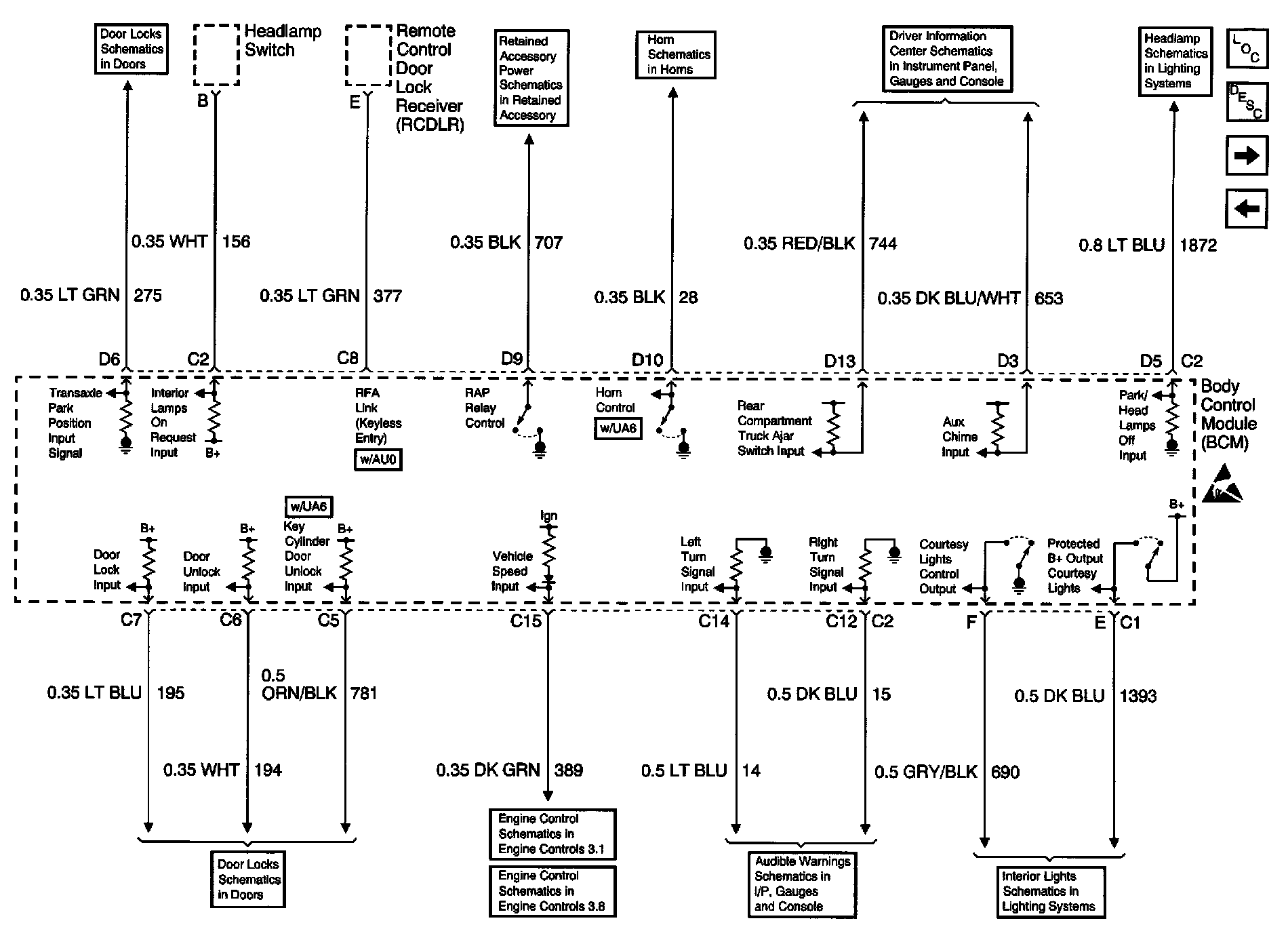

Body Control Module Schematics: Inputs and Outputs:
