Pontiac
>>
2000
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
Body Control Module
Body Control Module

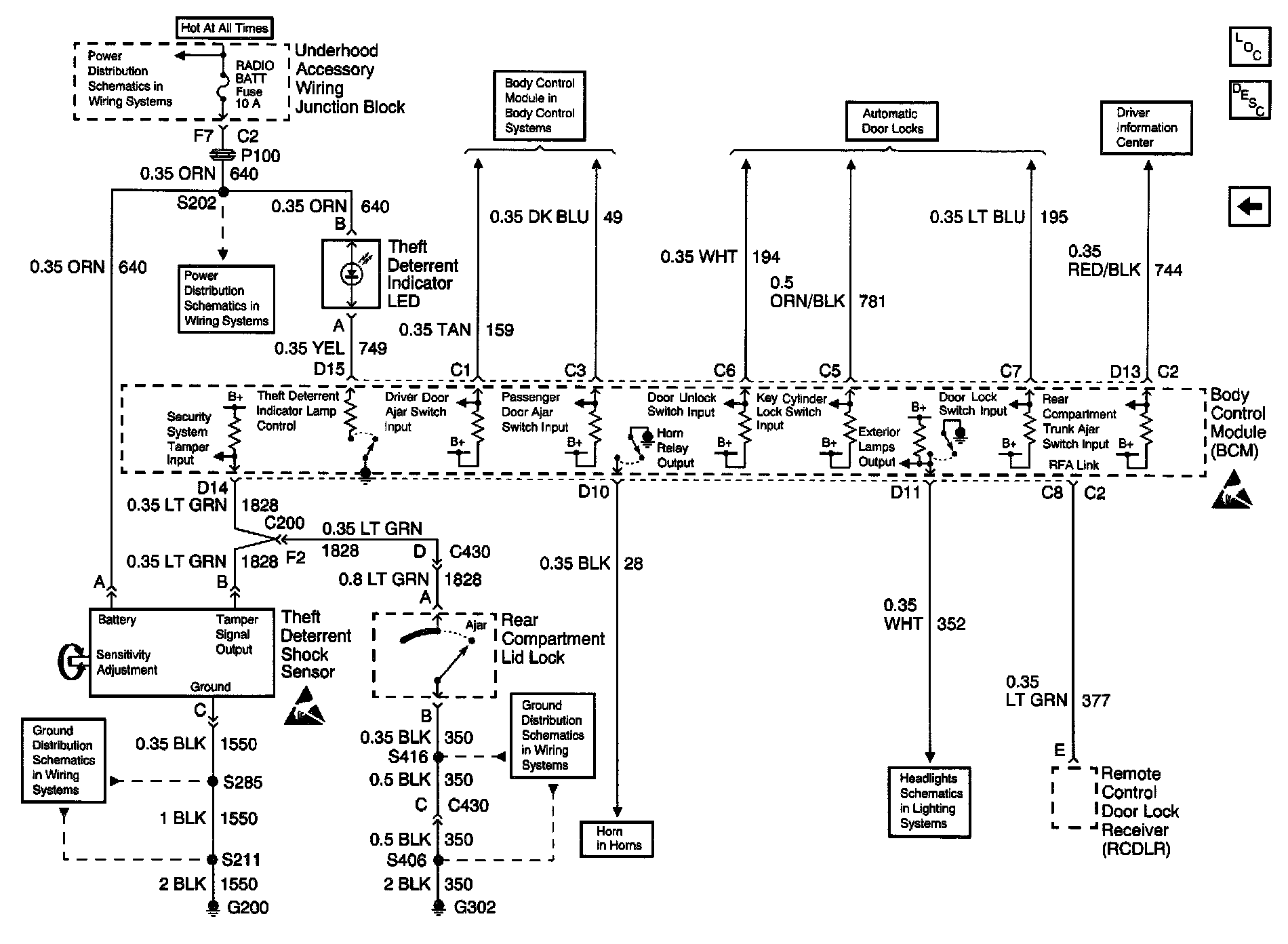

Theft Deterrent System Schematics: Body Control Module:
