Audible Warning Device Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

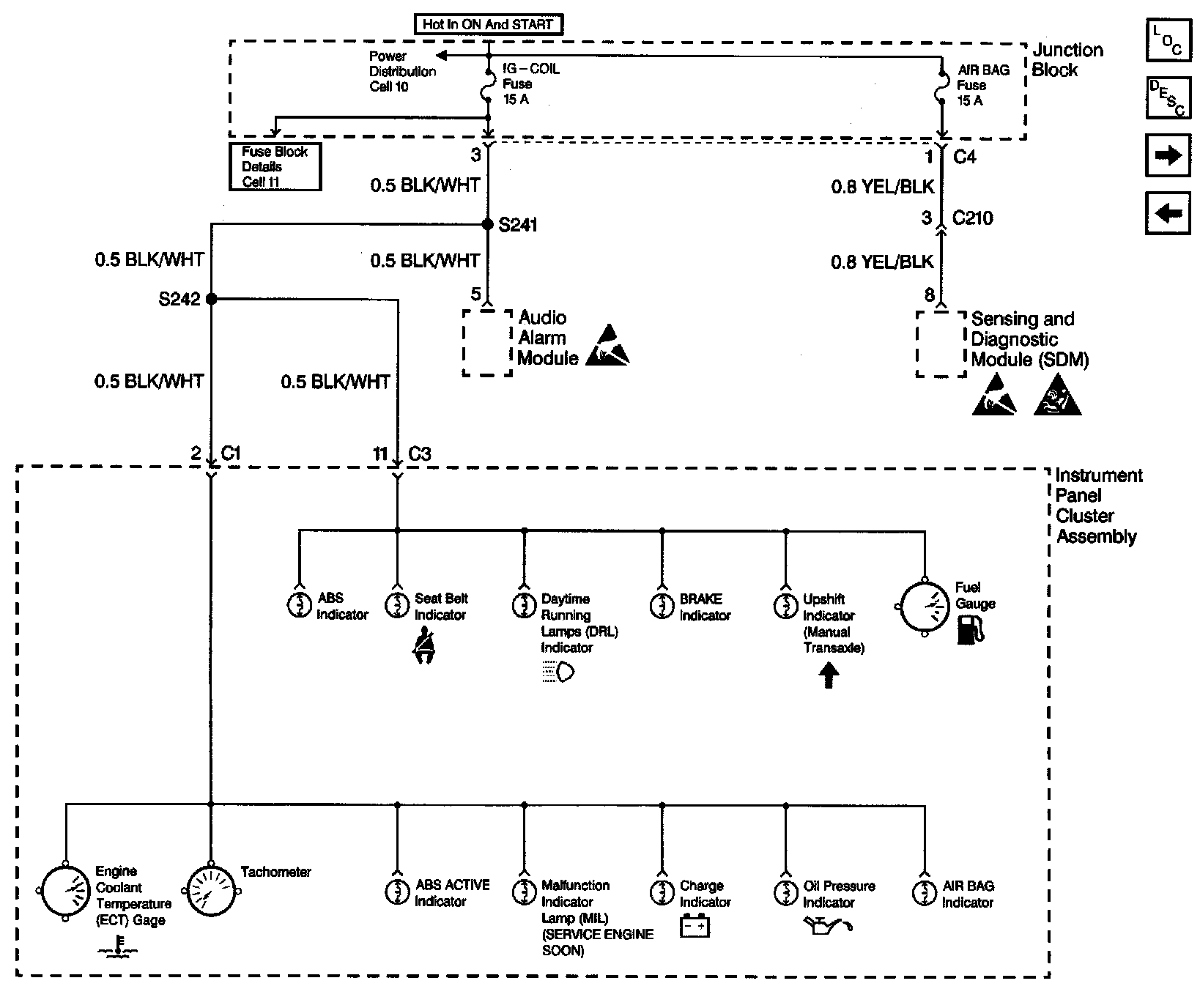

Fuse Block Details Schematics: Audio Alarm Module:
