Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>

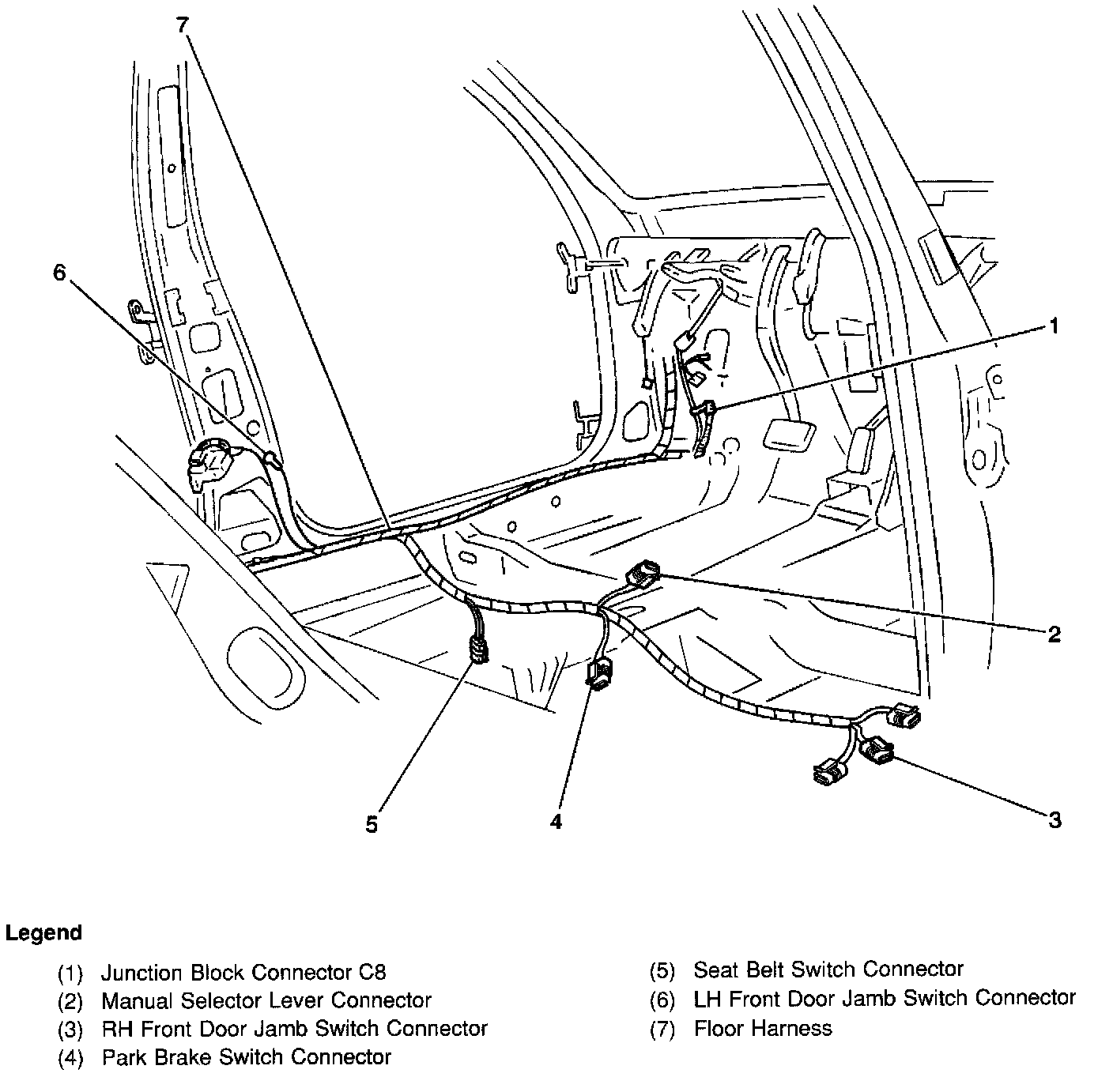

Junction Block Connector C8
Junction Block Connector C8
Location Views:
