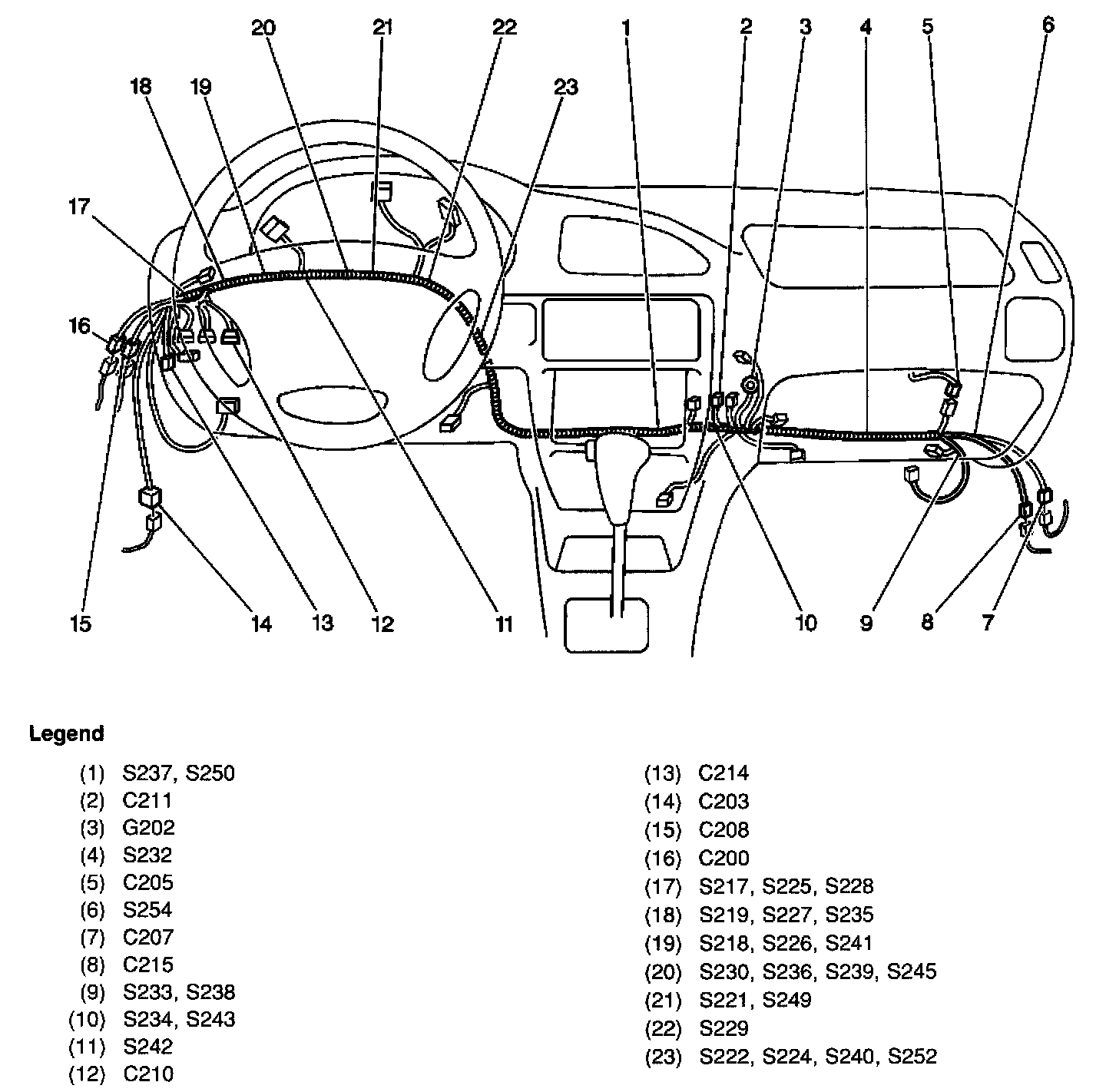

Instrument Panel Harness Routing View
Instrument Panel Harness Routing View
Harness Routing Views(Instrument Panel Harness Routing):
