Home
>>
Pontiac
>>
2000
>>
Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block C5
Junction Block C5

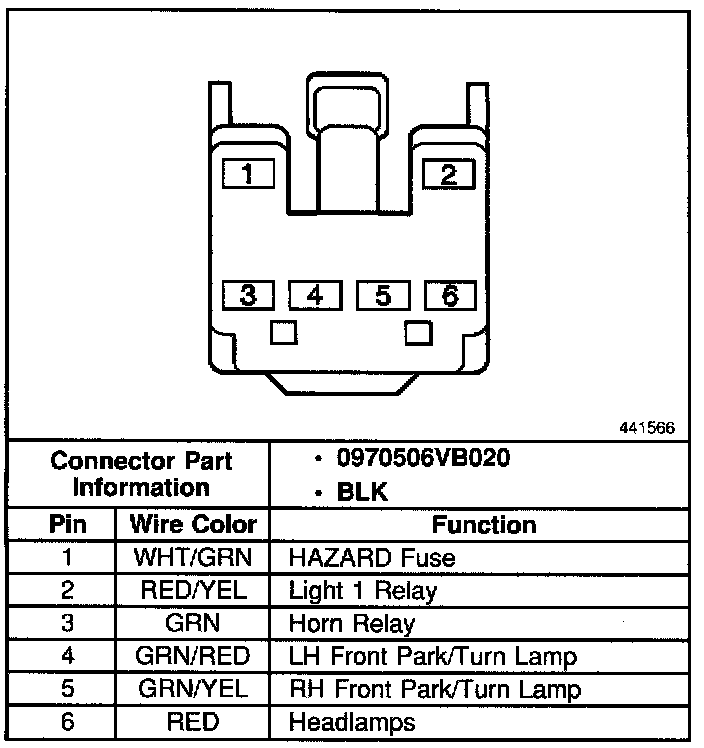

Junction Block - C5:
