Pontiac
>>
2000
>>
Firebird V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
System Diagram
System Diagram

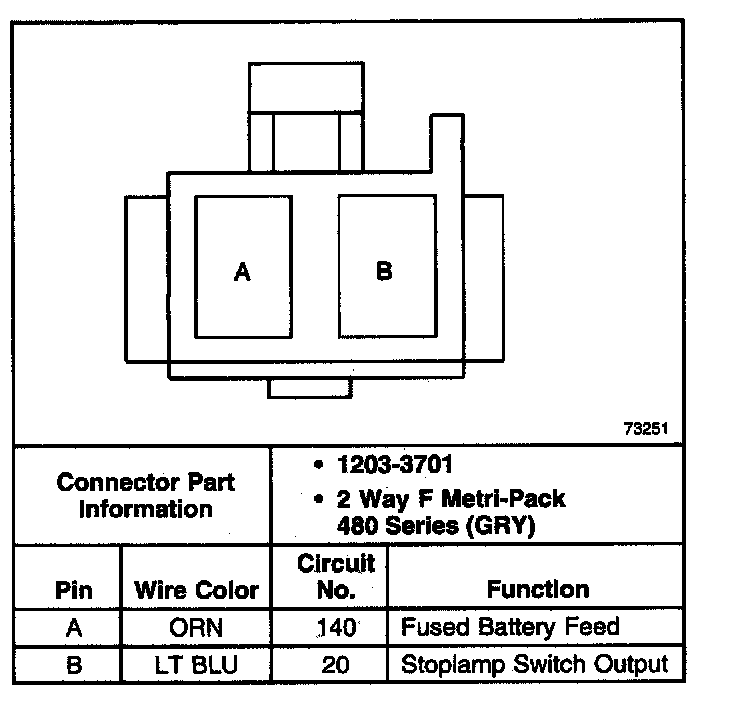

Stoplamp Switch (C1):
