Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Brake Switch
Brake Switch

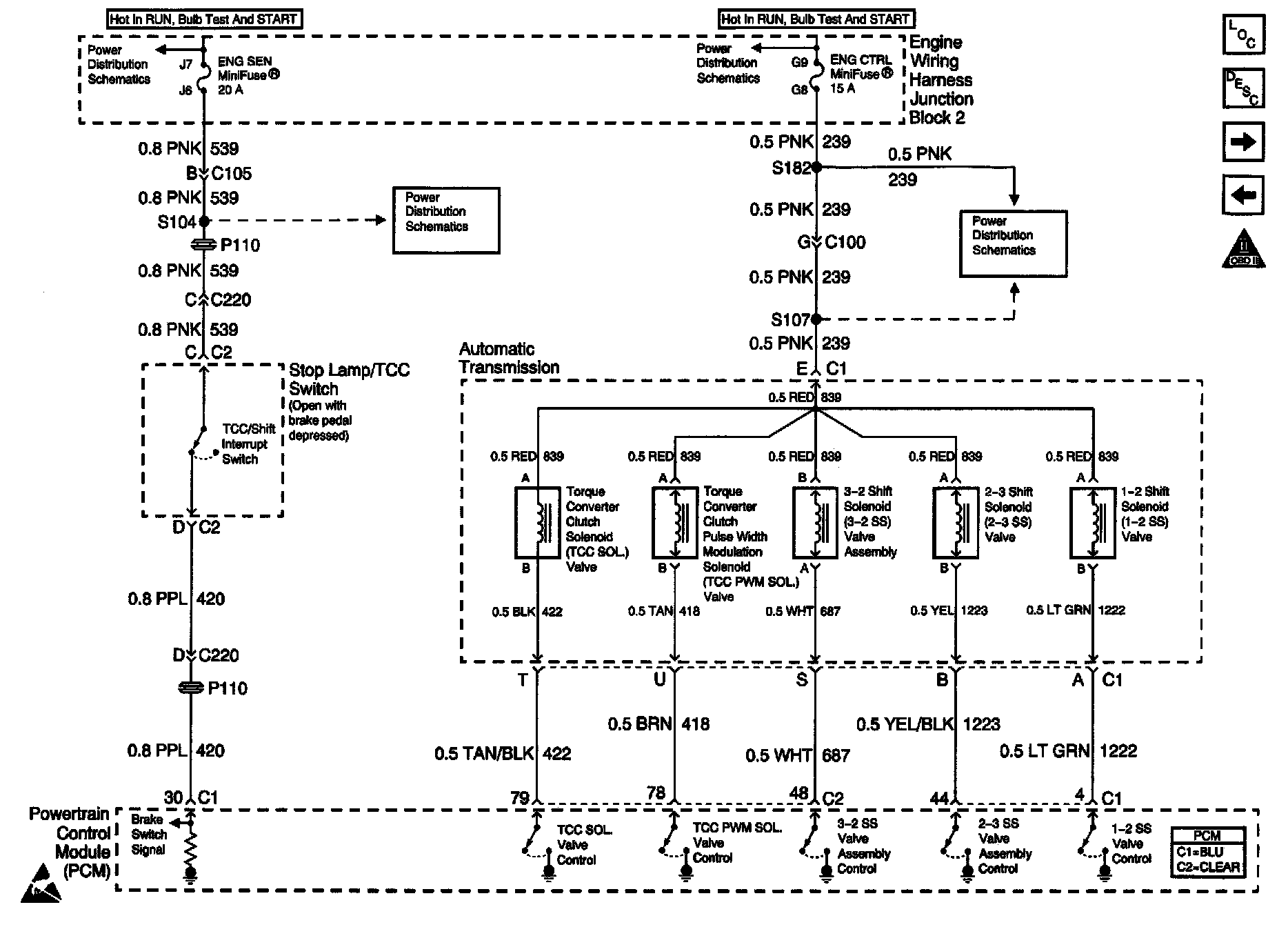

Engine Controls Schematics: Automatic Transmission, Brake Switch:
